Knowledge BaseSubject: | Bug (I guess) |
---|---|
Status |
Deferred |
Product | WireCAD v9 |
Product Level | PRO |
Database Type | SQL Azure |
Build Number (last 4 digits of version) | 17065 |
Upload | Download! |
Message

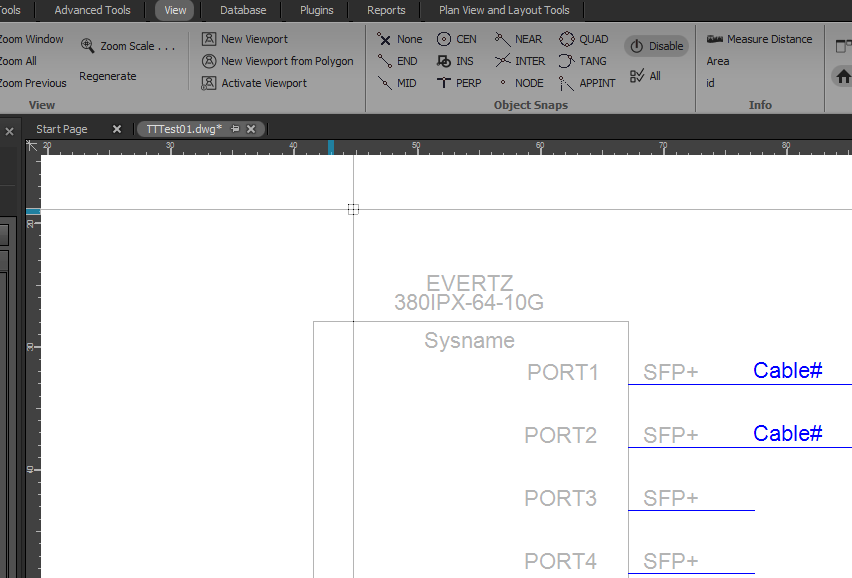

I prefer the "dark skins" whn i am working in Wirecad. However i have discovered something i believe is a bug. When using the Darkroom "Dr" skin, it affects the layout and what you are printing. All colors in the drawing that supposed to be black, are now grey. I guess the skin should not affect the layout on the drawings itself?
This happends both for the drawing inside the viewport and also text in the title-fields.
This happends both for the drawing inside the viewport and also text in the title-fields.
26-June-2017 (04:27 AM)

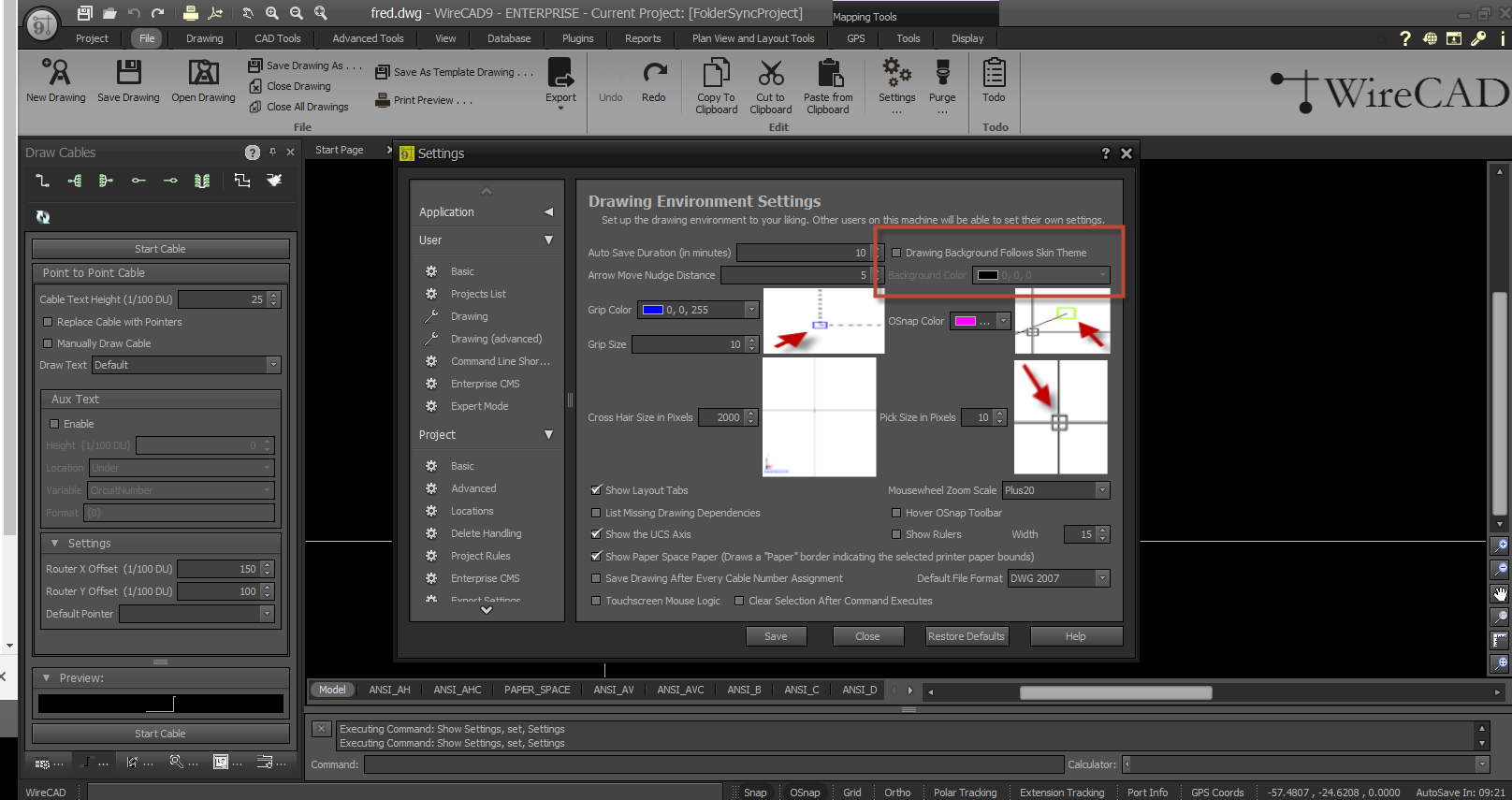

This is a known issue. The fix is to open the Settings dialog and on the [User][Drawing] section set the "Drawing Background Follows Skin Theme"=false. Then set the color of the background = black. See the attached screen shot. You will need to close and reopen any drawings to set the foreground color.
26-June-2017 (01:42 PM)
