Knowledge Base| Subject: | Changing font in Equipment Blocks |
|---|---|
| Status |
As Designed |
| Product | WireCAD v8 |
| Product Level | PRO |
| Database Type | SQL Server |
| Build Number (last 4 digits of version) | 1381 |
| Upload | No file! |
Message
Customer
I would like to have the font options for equipment blocks and to be able to have the port names be a different font than the descriptors. I think this would make it easier to visually separate the two.
20-October-2016 (11:24 AM)
Each equipment block has a different text style for each descriptor, pins, connectors, etc.

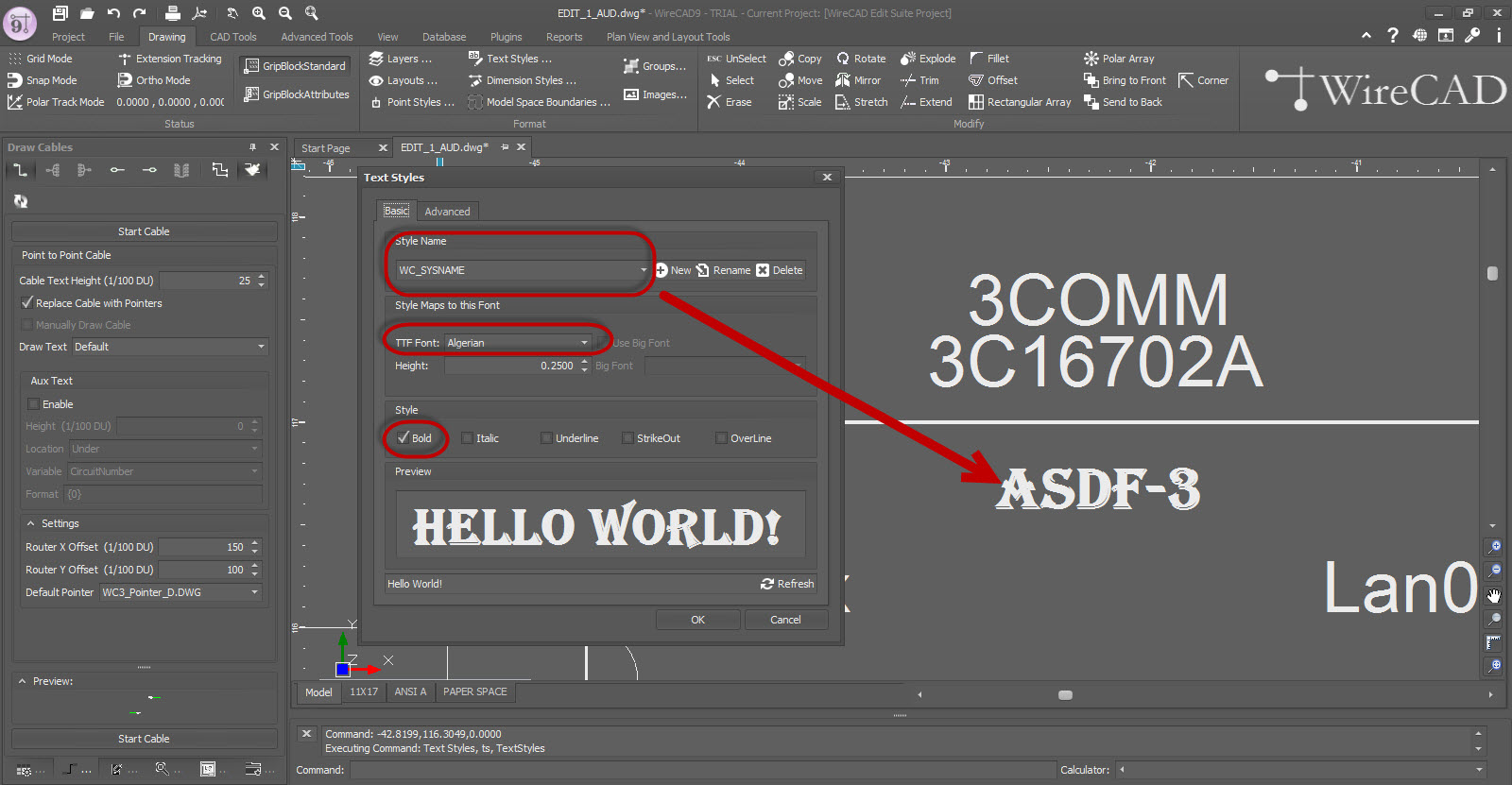

Edit the Drawing>Text Style - WC_SysName style to effect the SysName on ALL blocks in the drawing. See the attached pic.
Edit the Drawing>Text Style - WC_SysName style to effect the SysName on ALL blocks in the drawing. See the attached pic.
20-October-2016 (01:12 PM)
Support
Customer
Hmm ok. I was thinking this could be done in Equipment Library>Display Preferences. Though I see that the font height setting in Drawing>Text Style window does not do anything. I can only change the font of all the block text in Equipment Library>Display Preferences, under Display Properties>Text Height. I want to be able to make different layers have different text heights within a block.
20-October-2016 (02:01 PM)
We have implemented that functionality in v9 where the text height inherits from the style.
20-October-2016 (03:18 PM)
Support
