Delete or Erase
Default command line shortcut: e

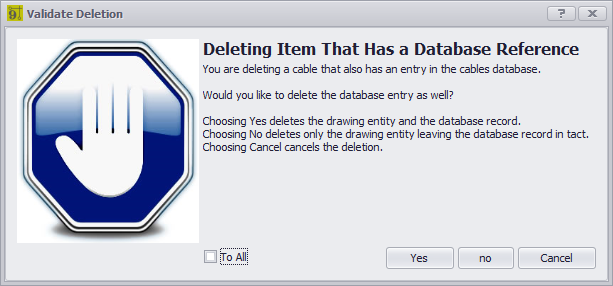

When deleting an entity in the Applies To list you will be presented with this decision.
This indicates that the entity you are deleting has an matching record in one of the databases.
It is your choice as to whether to keep or delete the associated database record.
Example
Assume you have a device called SRVR-01. Further that SRVR-01 has appearances in the video drawing and the audio drawing.
When you decide to delete the instance that is in the video drawing, you will be shown this dialog and need to decide whether to delete the database entry as well.
The appropriate response in this case is not to delete the database record since we still have the instance in the audio drawing.
Applies To:
Blocks with SysNames
Terminals with SysNames
Cables with Cable Numbers.
