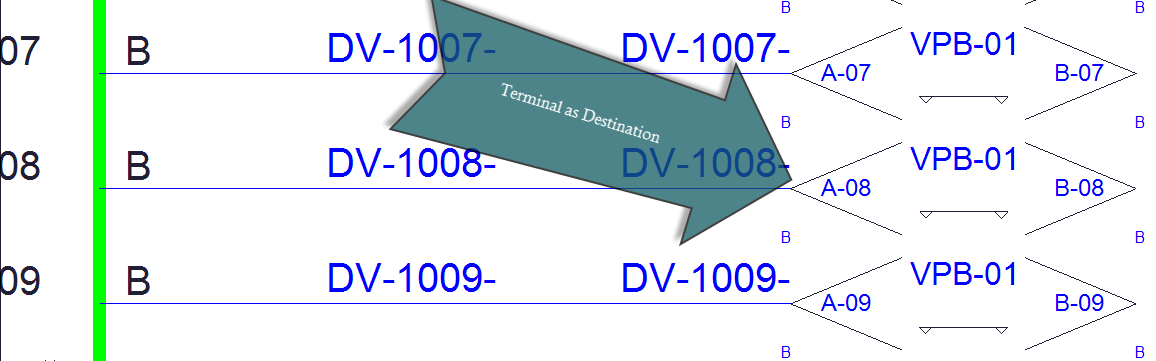

Terminal as Destination Window

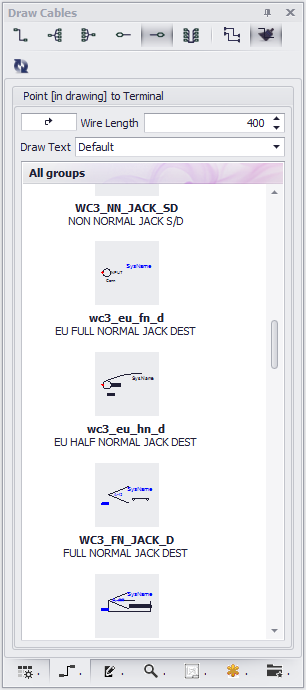

Displays the available Terminals sorted by Terminal style (Jack,Terminal, Pointer).

Note: Terminal file suffixes determine whether the file will be displayed in this window. Files stored in the %BLOCKS%\WireCAD Terminals support path a _SD.DWG, or _D.DWG suffix will appear in this view.
