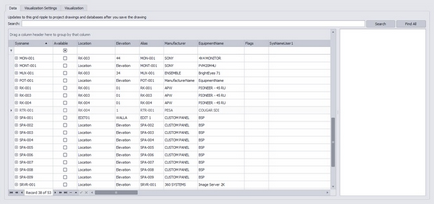

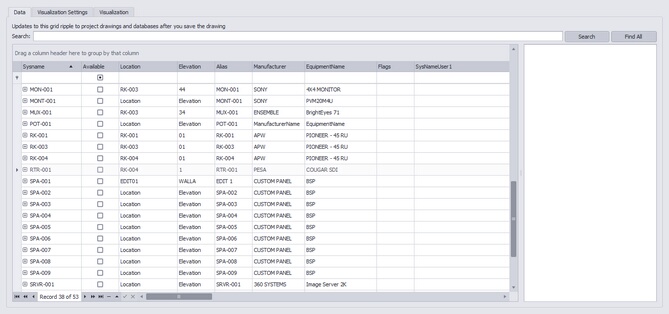

Menu: Database>Project Systems>Equipment List (SysNames)
Default command line shortcut: sys
See the Settings Tab
The Equipment List Visualization tool utilizes information in the Project Systems table and the Global Equipment Library and the Project Cables database to create a view of all cables attached to the selected item.
These details are useful for error checking and in the field as an installation aid.

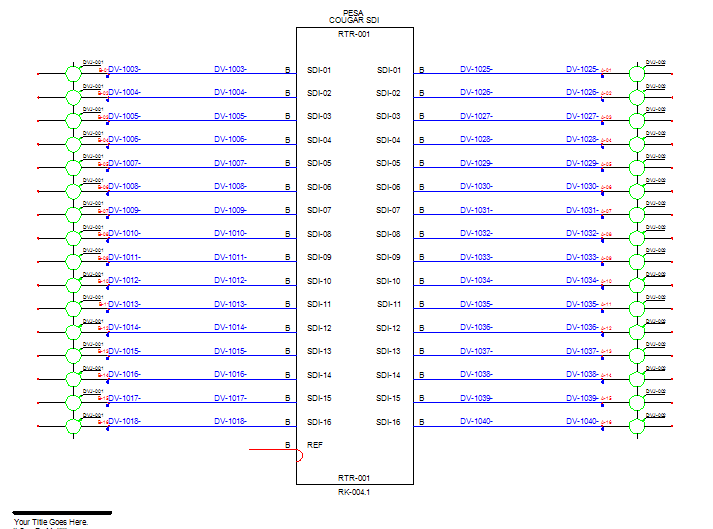

System Snapshot of all ports and connections
Controls
•Settings Tab - Control the output of the Visualizer.
•Use Last Display Order if Set - Sorts the ports of the block based on the saved display order if any.
•Terminal - The terminal to display.
•Use Last Saved Appearance - If there are device level setting saved, use them.
•Body Width and Pin Spacing - Appearance settings in 100/DU.
•Port Data Source -
Pull the port data from the Equipment Library. This will show ALL ports associated with this device definition.
Pull the port data from the Cables table. This will show only those ports to which cables have been attached and assigned.
•Title Block - Describes the visualization. Salt to taste.
•Visualization tab - Does it.
