Explanation

Scan for common issues.

This tool will generate data in the project Discrepancies table. You can view it by double-clicking the item in the Project Explorer.



Prerequisites

1.Open Project



Operation

1.Start the tool.

2.Select items to scan for.

3.Open the project Discrepancy report from the Project Explorer.

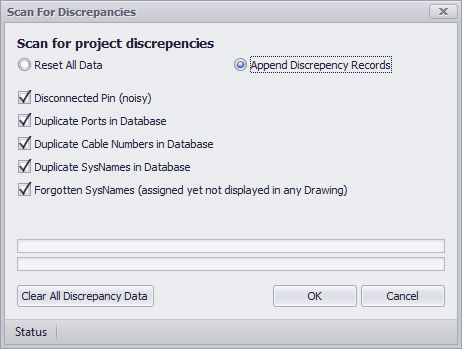

Dialog Options

•Disconnected Pins - This is really noisy as it shows all available ports (from the global database) that do not have connections to them in the Cable table.

•Duplicate Ports - If you duplicated a port in two places you will be warned on cable number assignment this will warn you again.

•Duplicate Cable Numbers - If you duplicated a number here it is.

•Duplicate SysNames - If you duplicated a SysName here it is.

•Forgotten SysNames - If the SysName appears in the Equipment List but not in any drawing.

•Append/Reset - Keep the discrepancy list intact or reset and start over.

•Clear All Data - Reset and start over.
