one-to-many cable
Use this set of controls to place a cable from one output to many inputs.

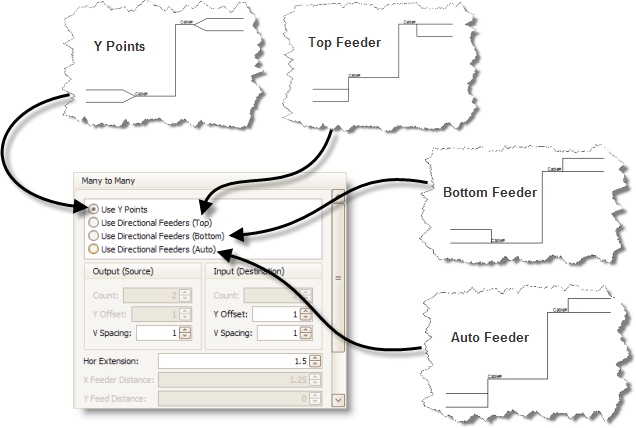

•Feeder selection - Determines the display of the Y point(s).
•Count - Destination count.
Count=3

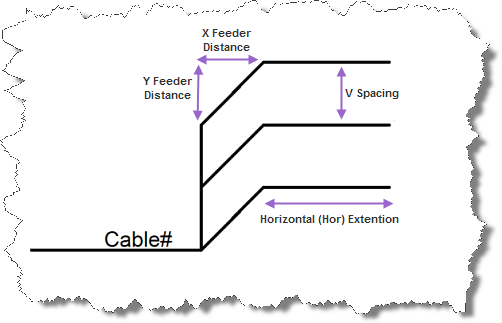

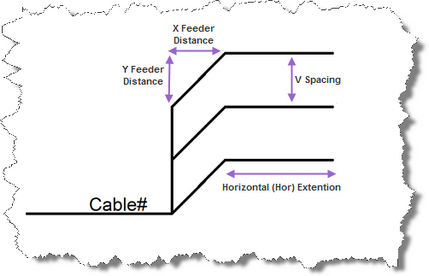

•Y offset, Y Spacing, Hor Extension in 100/DU
•Feeder distances in 100/DU
•One Cable Database Entry - Adds a single entry in the cables database and one Cable# text entity at the Y point.
•Many Cable Database Entries - Adds a many entries in the cables database and many Cable# text entity at the connection points.
Note: One-to-Many and Many-to-One cables set to Many Cable Database Entries will assign the connection point closest to the cursor when the cable is double-clicked. The first assignment on the cable will enter the database as expected, subsequent assignments will display the Existing Ports dialog prompting you to decide how to number the cables.
