Reference > Dialogs > Data Dialogs > New Equipment Wizard

Database > Equipment [File > New]

Commandline: none

Explanation

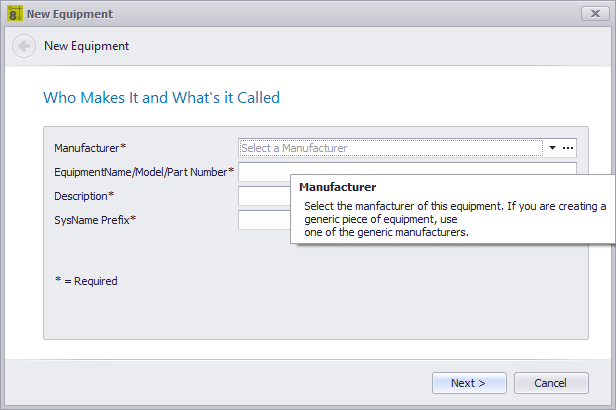

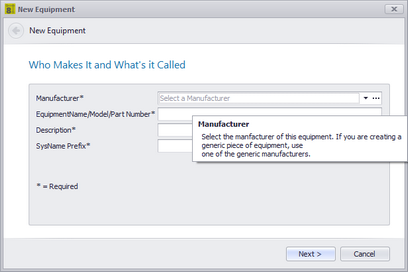

This tool allows you to create a new Equipment definition in the Global Equipment database.

•Manufacturer - Select the Manufacturer. Clicking the [...] button opens the New Manufacturer dialog.

•EquipmentName/Model/Part Number - Name it.

•Description - Describe it.

•SysName Prefix - Be brief.

•Front Panel File - Pointer to the front panel file. Must reside in the %BLOCKS% support path.

•Plan View File - Pointer to the Plan View file. Must reside in the %BLOCKS% support path.

•Image - Right-click and select Load from the context menu to add a image.

•Categories, Synonyms - This is for you. Create categories and synonyms.

•Abbreviation, Accessory Of - Not really used yet.
