<< Click to Display Table of Contents >> Navigation:  Reference > Forms > Project Data Forms > New Circuit (ENT ONLY)

---

Database > Circuits [File > New]

Commandline: none



Explanation

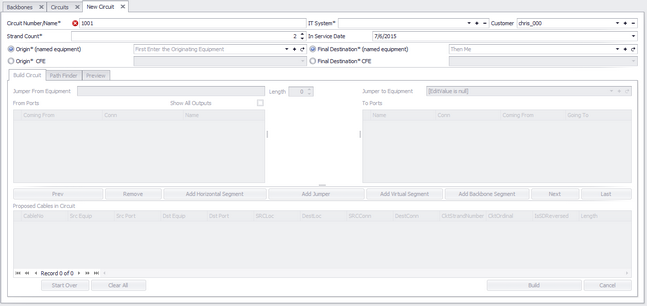

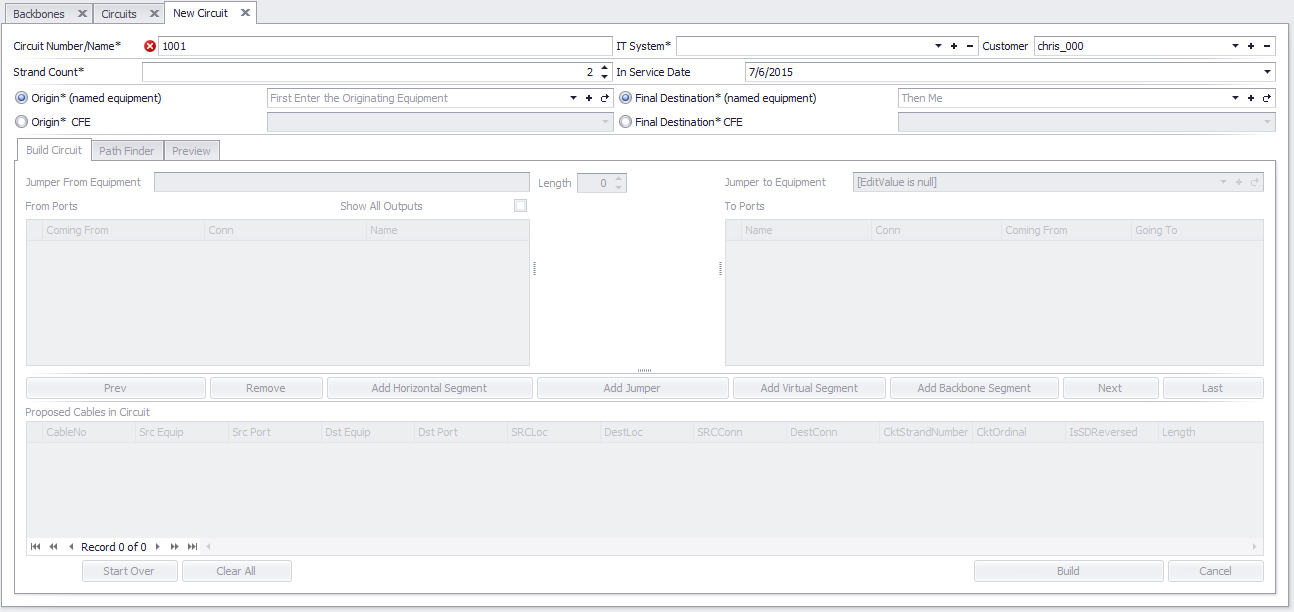

This tool provides a means but which to create a new circuit. Circuits can either be assembled manually by follow the paths of panels through Backbones and jumpering to the next element of the first and last elements may be defined and then handed to the Path Finder tool which will find and present candidate routes.



Prerequisites

1.Backbones added.



Related Topics

New Circuit
