Database > Cables

Commandline: cg



Explanation

This tool allows you to manually create a Cable in the Cables table.



Prerequisites

1.SysNamed source and destination equipment in the Equipment List.



Operation

1.Start the tool.

2.Select the source SysNamed equipment.

3.Select the destination SysNamed equipment.

4.Click the [...] button on the Cable No field to generate a Cable Number.

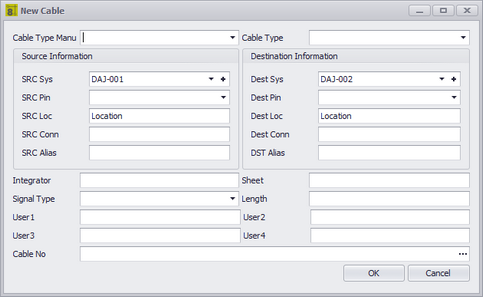

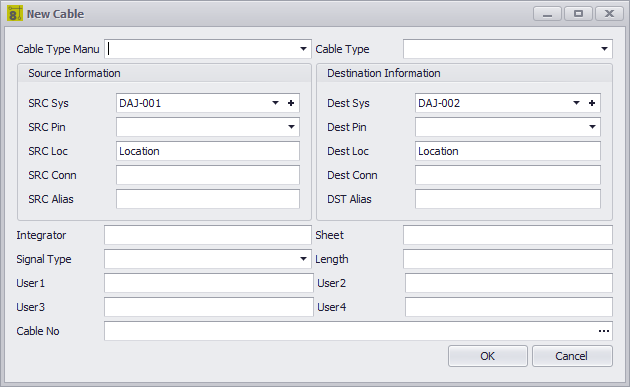

Dialog Options

•Cable Type

•Source Information - Set the source info.

•Destination Information - Set the destination info.

•Cable No - Click the [...] button to generate a cable number.
