Drawing > Drawing > Layouts
Commandline: layouts
A Layout is used to compose or lay out your model drawing for printing. A layout may consist of a title block, one or more viewports, and annotations. As you create a layout, you can design floating Viewport configurations to visualize different details in your drawing.
A layout is a paper space environment that simulates a sheet of paper. In a layout, you can create and position viewport objects, and you can add a title block or other geometry. You can create multiple layouts in a drawing to display various views. Each layout displays the drawing as it will be printed on the sheet of paper.
Typically, when you begin designing a layout environment, you step through the following process:
1.Create a model drawing.
2.Activate or create a layout.
3.Insert a title block.
4.Create floating viewports and position them in the layout.
5.Set the view scale of the floating viewports.
6.Print your layout.

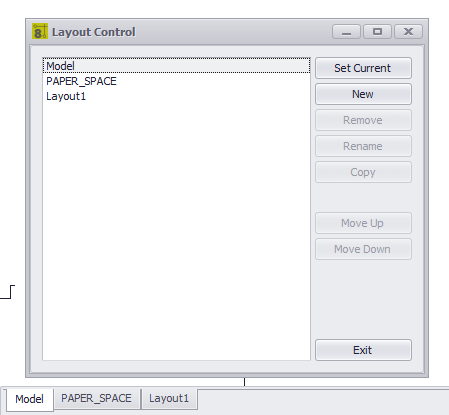

•Layout List
•Set Current - Set the selected item to be the current view.
•New, Remove, Rename
•Copy - Copy all entities from the selected layout to a new layout with the name of your choosing.
•Move Up/Down - Reorder the list.
