Database > Equipment Library [I/O]
Drawing > Advanced Tools > Equipment Library [I/O]
Commandline: le
Several Others

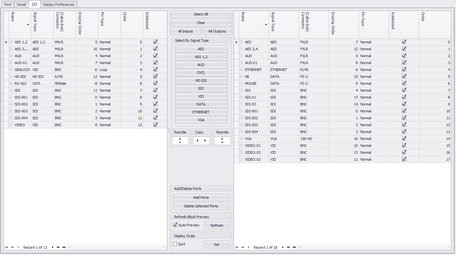

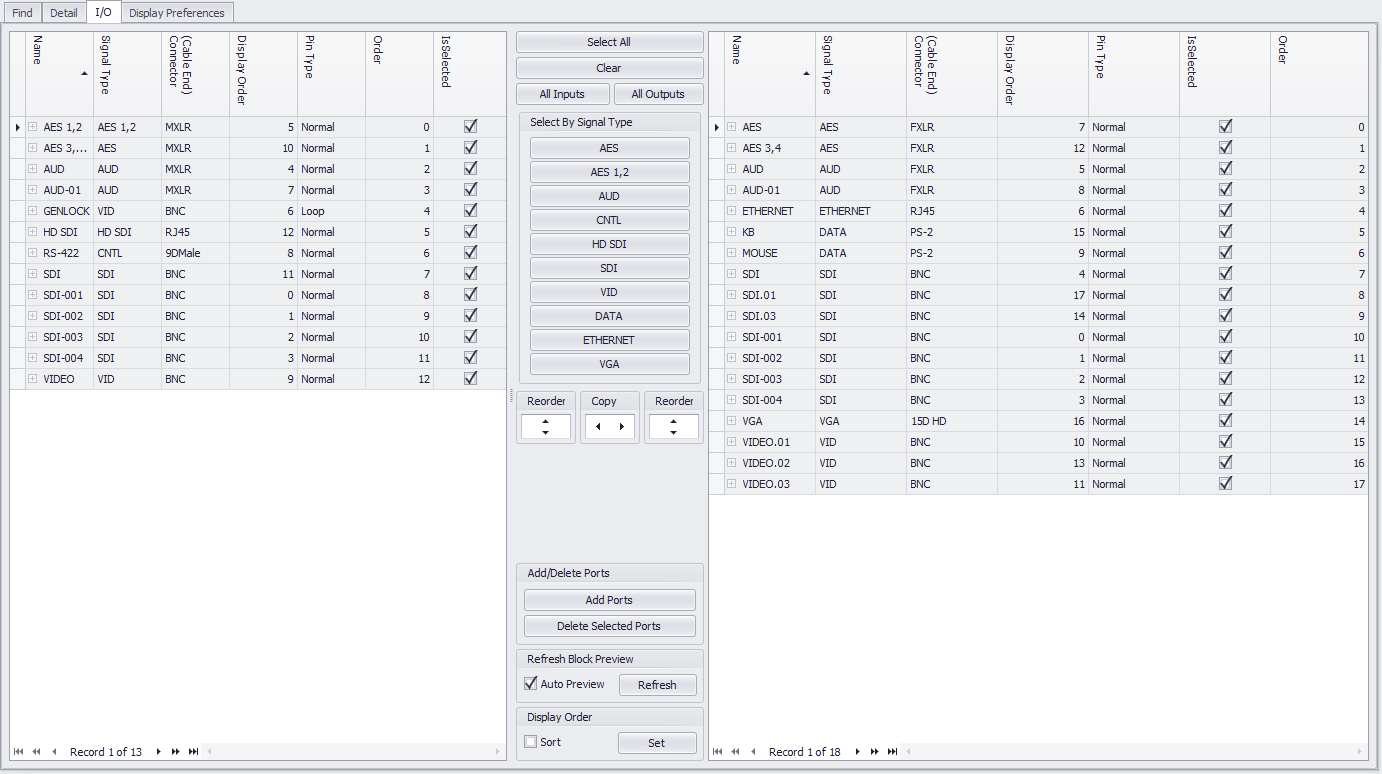

This is the Inputs and Outputs page. It represents the I/O of the currently selected device. Inputs are displayed in the left-hand grid and outputs are displayed in the right-hand grid. This is by convention only. You are free to place inputs on the right-hand side and vice-versa. Each port record consists of a Name, Type, Connector and a Pin Type. Selected records will be included in the preview of any Function I/O and Concept blocks that you create.
If you are using connector genders be sure to enter the cable-end gender not the chassis side.
•Inputs Grid, Outputs Grid - NOTE: Be sure to save your changes if you edit these grids manually by clicking File>Save.
•Select All, Clear Selection, All Inputs, All Outputs - Manipulate the selection.
•Select by Signal Type - Ten buttons in this frame will populate with the first ten signal types from the I/O records. Clicking the button will select all records in both grids of that signal type.
•Reorder - Move selection up/down.
•Copy - Copy side-to-side.
•Add Ports - Show the Add Ports dialog.
•Delete Ports - Delete the selected ports. You will be prompted for each grid. No save is necessary.
•Refresh - Refresh the preview.
•Display Order - Set and sort by the Display Order column. This allows you to rearrange the lists and be able to return later to your work.
