<< Click to Display Table of Contents >> Navigation:  WireCAD PRO Manual > Getting Started > Grid Basics > How To: Grid Functions

•Grid Searching - Enter your search text in the Search box and click [Search]. WireCAD will search all fields in the table for the search term. The % character is the wild card.

•Sort - Clicking on a column header will cause a sort. Clicking it again will reverse the sort order.

•Column re-ordering/resizing - Drag a column from its center to initiate a move. Drop it where you want it to display. To resize a column, drag its edge left or right.

•Column hiding/showing - To hide a column: right-click the column header and choose [Remove this Column] from the context menu.

To show a column:

1.Right-click any column header

2.Click the [Column Chooser] context menu item

3.Drag the column header you wish to display and drop it on the header bar with the other column headers.

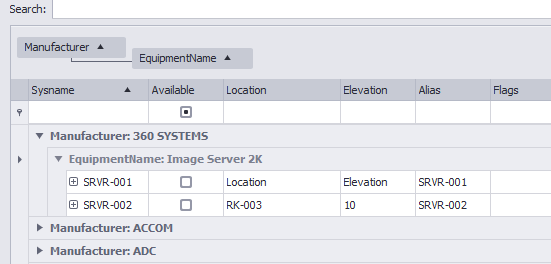

•Column grouping - If the grid supports grouping the grid will display a GroupBy panel at the top indicating that column headers may be dropped there to group.

To un-group simply drag the column header back to the header bar.



•Column filtering - Columns may be filtered in one of three ways:

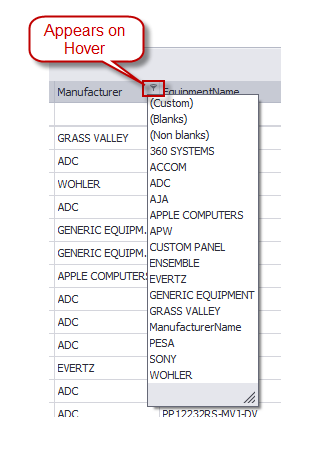

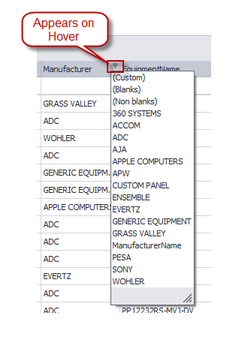

1.Click the column header filter icon on the column header. You will be presented with a list of unique values found in that column.

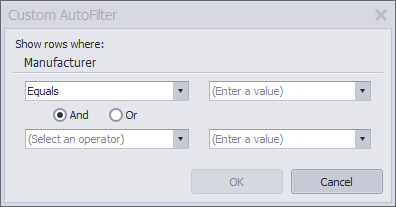

2.Click the (Custom) menu item presented in the column filter list.

3.If the grid supports it a filter pane will appear as the top row of the grid. Entering filter criteria in the desired column will cause filtering.

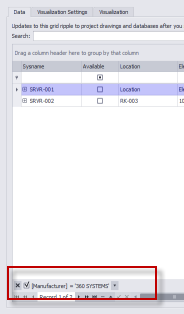

•Clearing Filter Criteria - If a filter has been applied to a grid, a filter panel will display on the grid in the lower left hand corner.

You may clear the filter by closing [X] the filter panel.



•Copy Selection Down - If the grid supports it you will be able to copy the top item in a selection down into all of the selected cells below it. Follow these steps:

1.Create your selection

2.Click Edit>Copy Selection Down or press [Ctrl]+[D] on your keyboard.

3.Be sure to click File>Save to commit your changes to the database.



•Increment Selection Down - If the grid supports it you will be able to increment the top item in a selection down into all of the selected cells below it. Follow these steps:

1.Create your selection

2.Click Edit>Increment Selection Down or press [Ctrl]+[I] on your keyboard.

3.Be sure to click File>Save to commit your changes to the database.



•Deleting Cell Data - To delete the contents of the selected cells simply click the [Del] key on your keyboard.



•Deleting Selected Rows - To remove the rows from the grid:

1.Select the rows to delete by click on the Record Selector (left-most column without data).

2.Click Edit>Delete Selected Rows or click [Ctrl]+[Del] on your keyboard.

3.Be sure to click File>Save to commit your changes to the database.

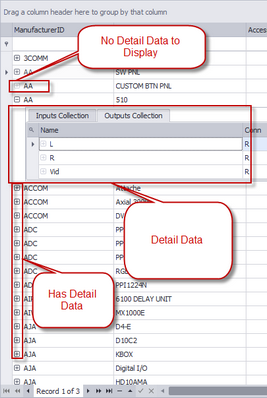

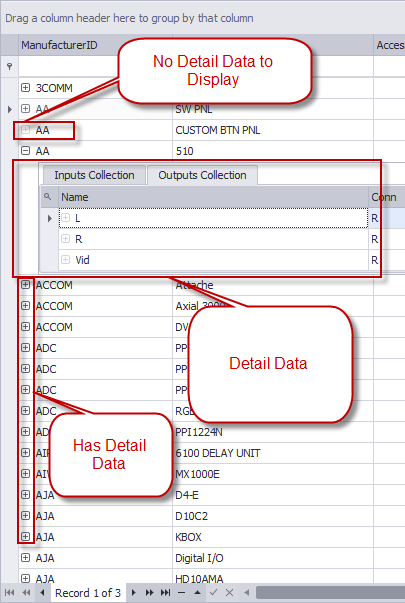

•Display Hierarchical Detail Data - If the grid supports it and there is detail data to display you can click the [+] button in the left-most row.

•Export - Click File>Export>[File Type]. WireCAD will then export the data with your current grouping, sorting, and filtering applied to the selected format.

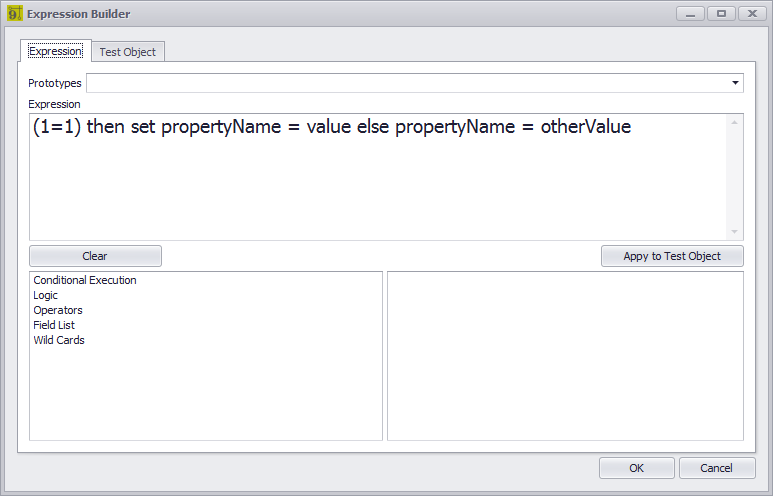

•Execute Expression - Manipulate data using the expression engine:

1.Open the grid on which you want to manipulate or transform data.

2.Click [Function] button to show the Expression Builder.

3.Enter an expression to evaluate. You can test it against a prototype Test Object on which you can set the data before testing.

4.Once happy with the expression click [OK] to execute the expression against the grid data.
