<< Click to Display Table of Contents >> Navigation:  WireCAD PRO Manual > Advanced Topics > Edit Block in Place > How To: Edit a Block In Place

1.Open a drawing with a WireCAD created functional block.

2.Select the block. It must be the only thing in the selection.

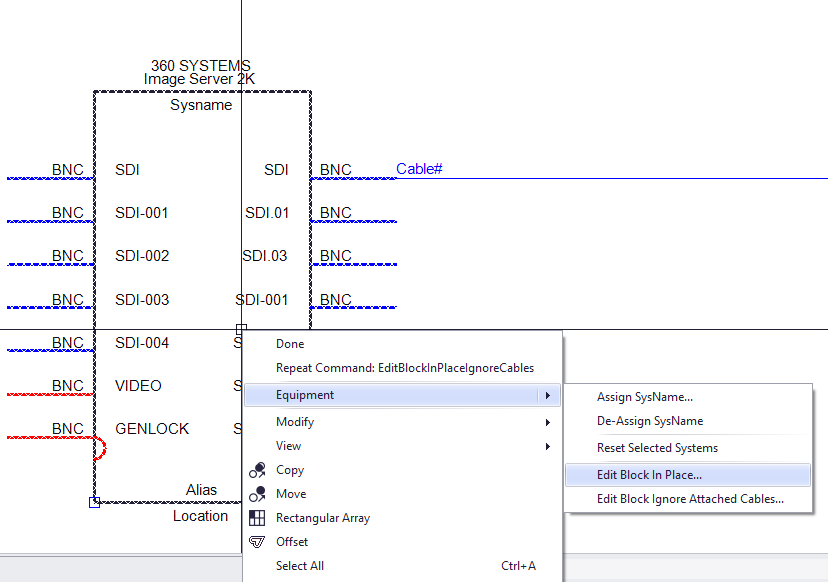

3.Right-click and select Equipment>Edit Block in Place.

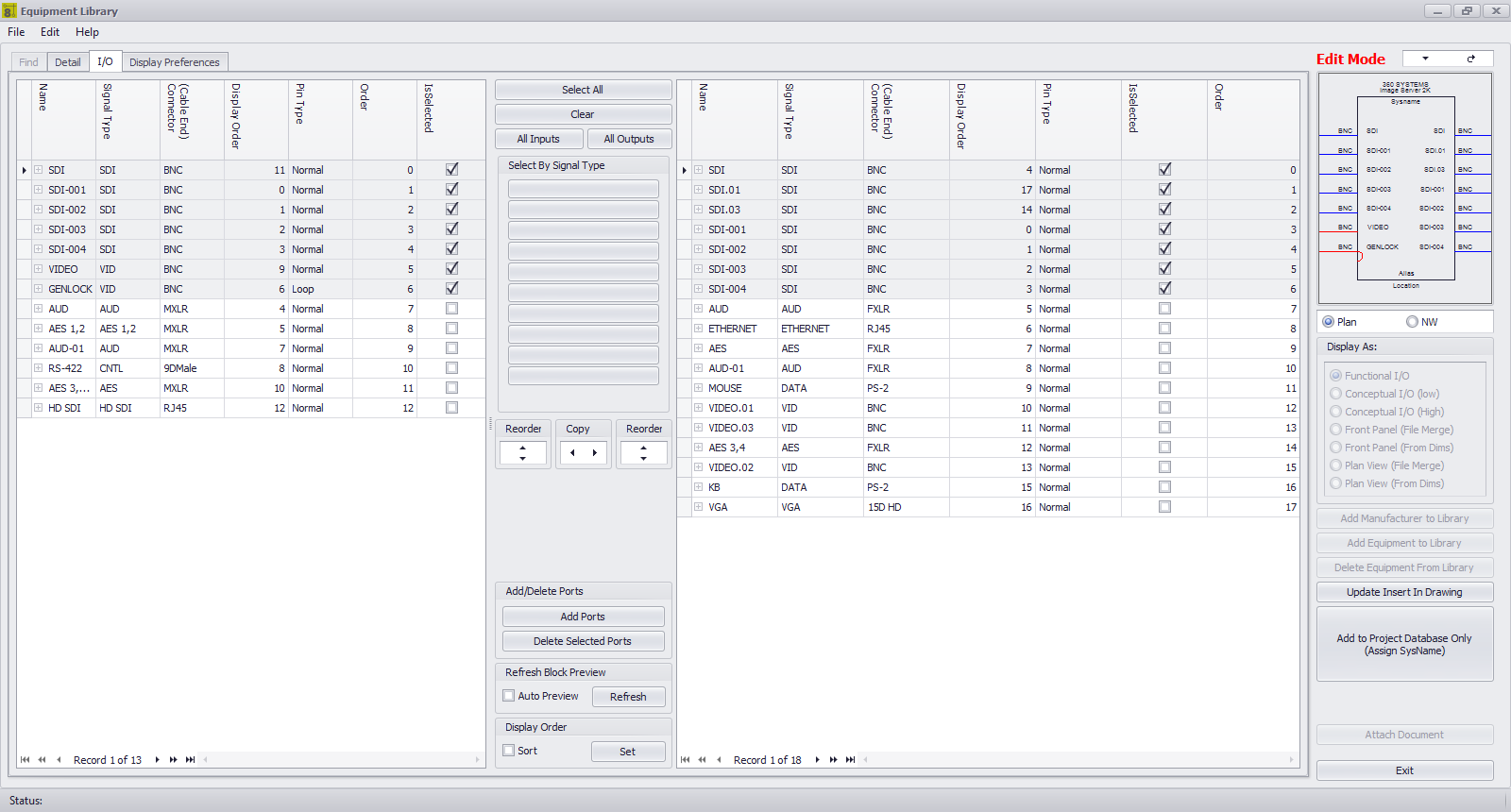

4.The block is loaded into the Equipment Library for edit.

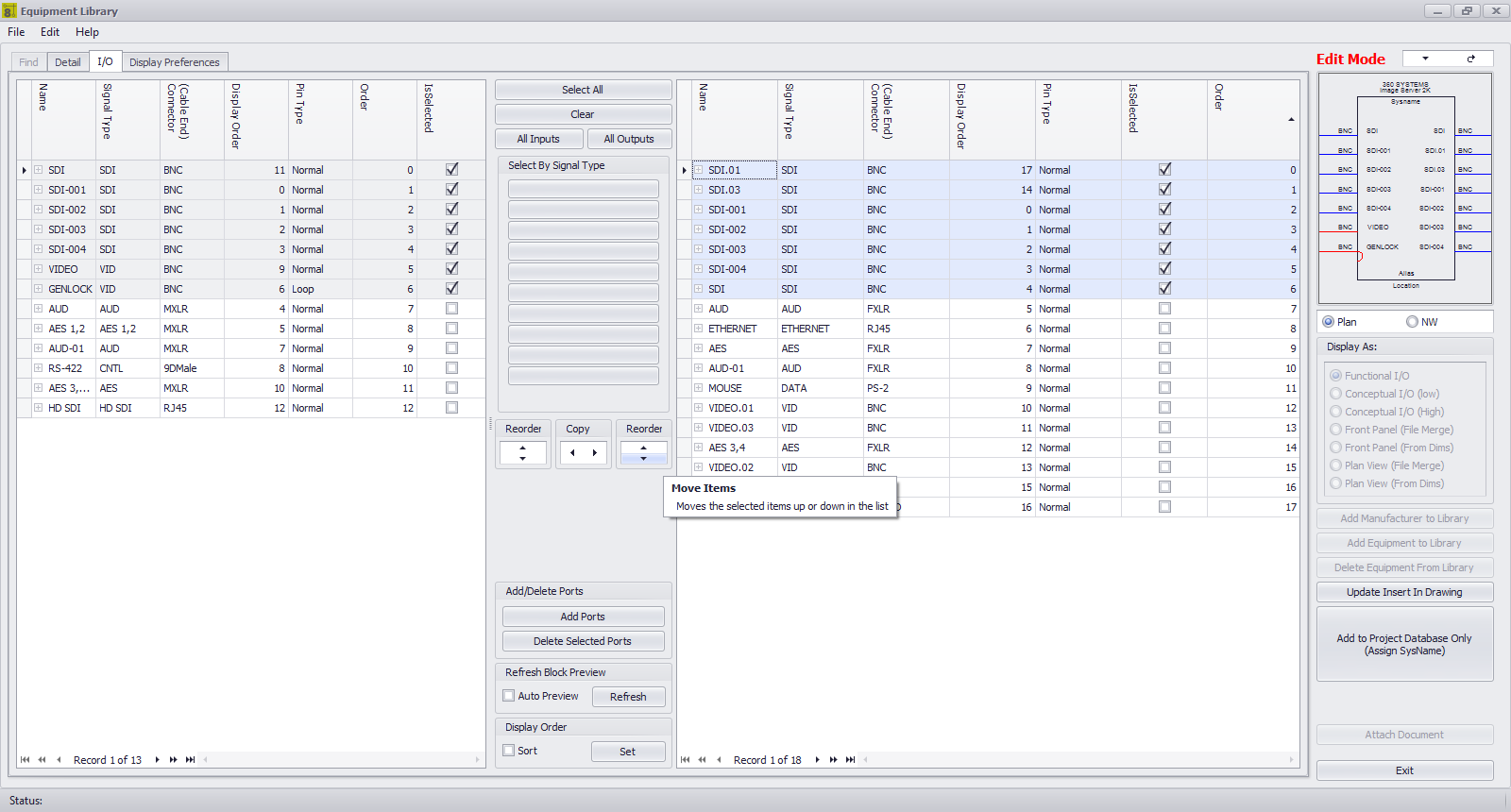

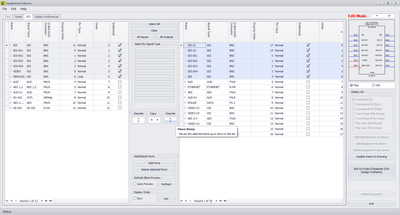

5.Make changes. Here will move the top SDI port to the bottom.

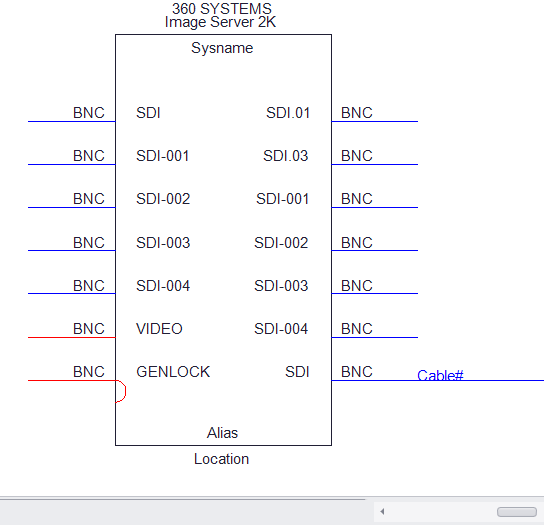

6.Click [Update Insert in Drawing].

7.Done.
