<< Click to Display Table of Contents >> Navigation:  WireCAD PRO Manual > Plan View and Layout Tools Dialogs > Draw Prewire > How To: Draw a Prewire Cable in PlanView





Operation



1.Open a plan view drawing.

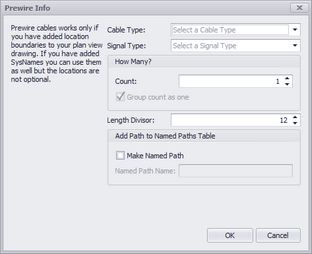

2.Click PlanView and Layout Tools > Draw Prewire Cable.

3.Fill in the form.

4.Click [OK]. This will dismiss the dialog and prompt you to draw a polyline.

5.Draw the cable path.

6.n Cables will be added to the project Cables table with a formatted number based on the project Cable Number Format and the Next Numbers table.

7.The polyline length will be divided by the Length Divisor field and added to the cable record Length field.
