1.Open the Equipment Library
2.Find the equipment which we will add I/O.

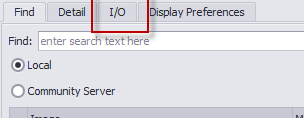

3.Select the I/O tab.

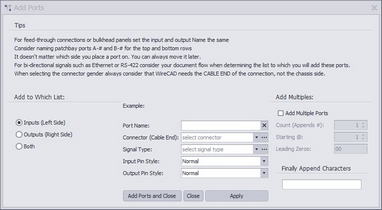

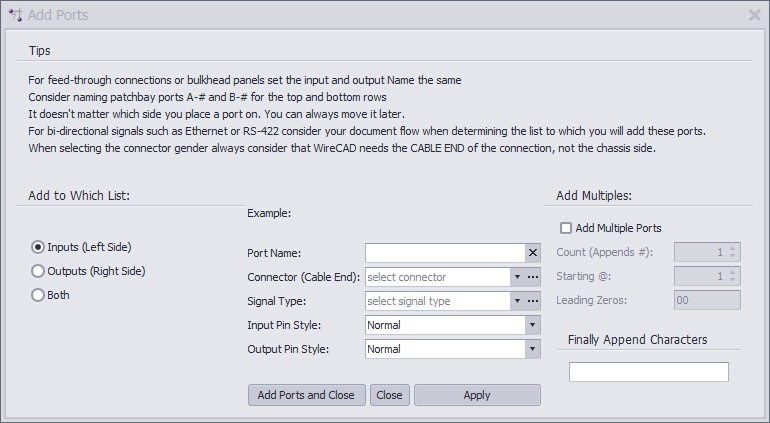

4.Click [Add Ports]. The Add Ports dialog will appear.
5.Enter a port name, connector, signal type.
6.Select Inputs, Outputs table or Both.
7.Click [Add Ports and Close] or [Apply] (if you want to leave the form open).

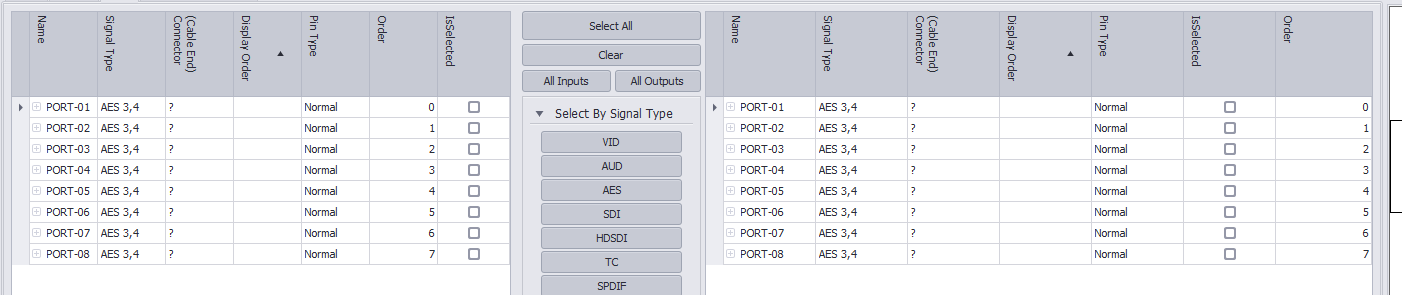

Your port(s) will be added to the selected list(s):
|

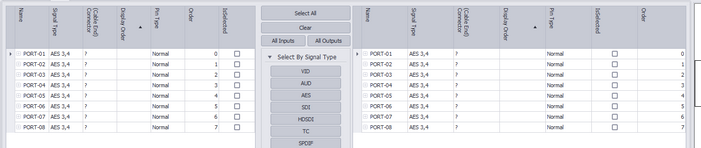

Try adding multiple ports. Enter "PORT-" (leave off the quotes). Select any Connector and Signal Type. Select the BOTH radio button to add to both lists. Now Check the Add Multiple Ports box and enter a Count of 8. Click [Add Ports and Close]. See below. |
