1.Open the Equipment Library.
2.Find an equipment definition to which we will add ports.
3.Select the I/O tab.
4.Click [Add Ports] button.

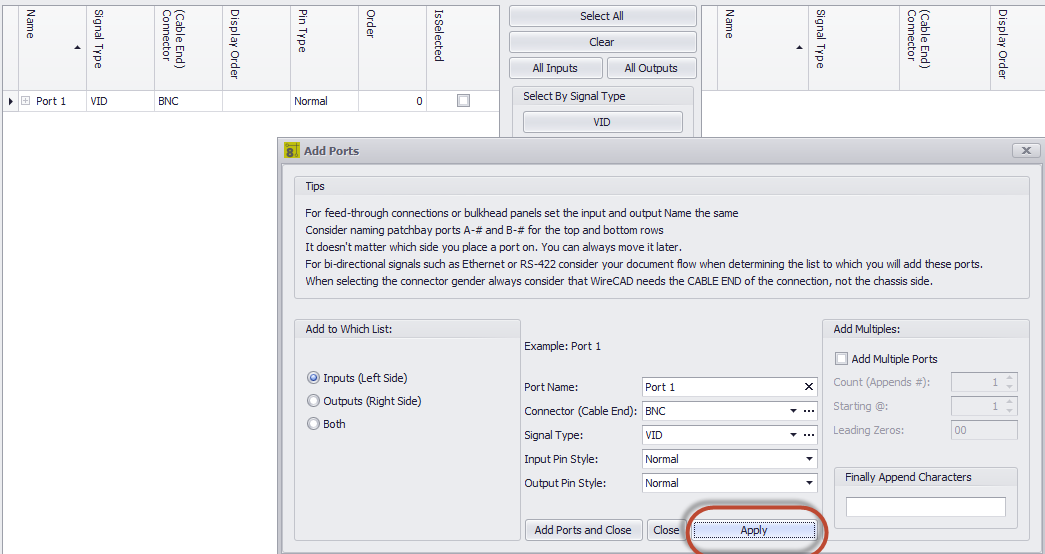

5.Add a single port to the Inputs table.

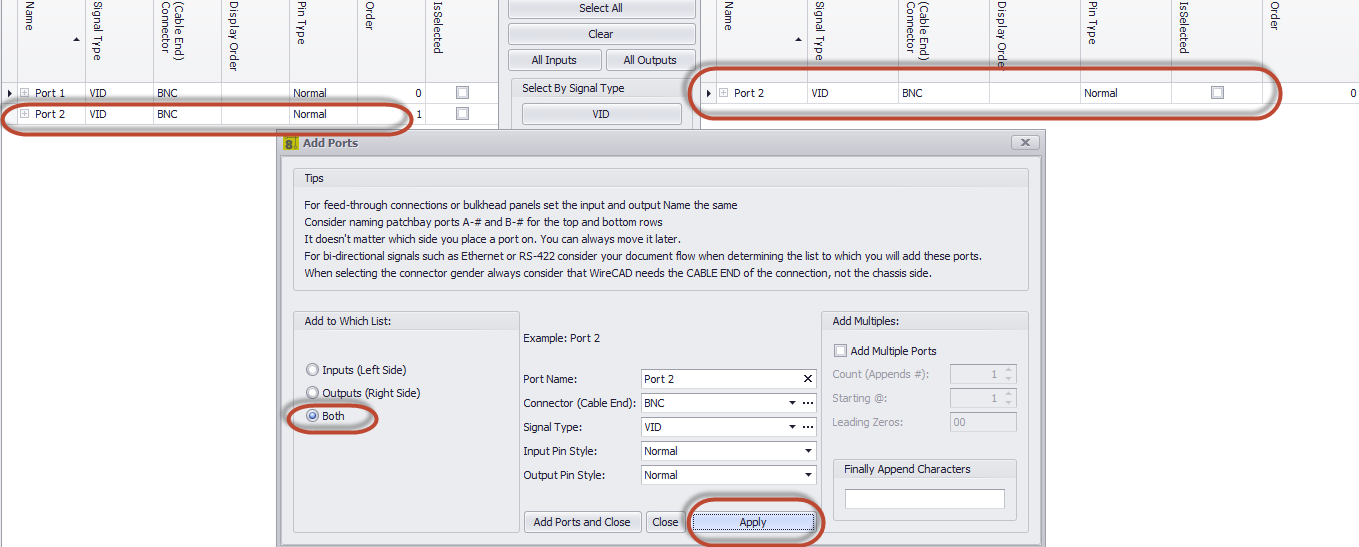

6.Add a single port to the Inputs and Outputs list at the same time.

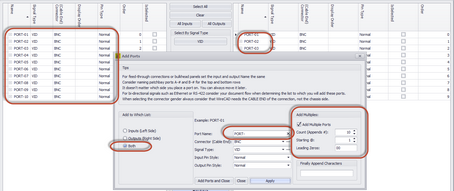

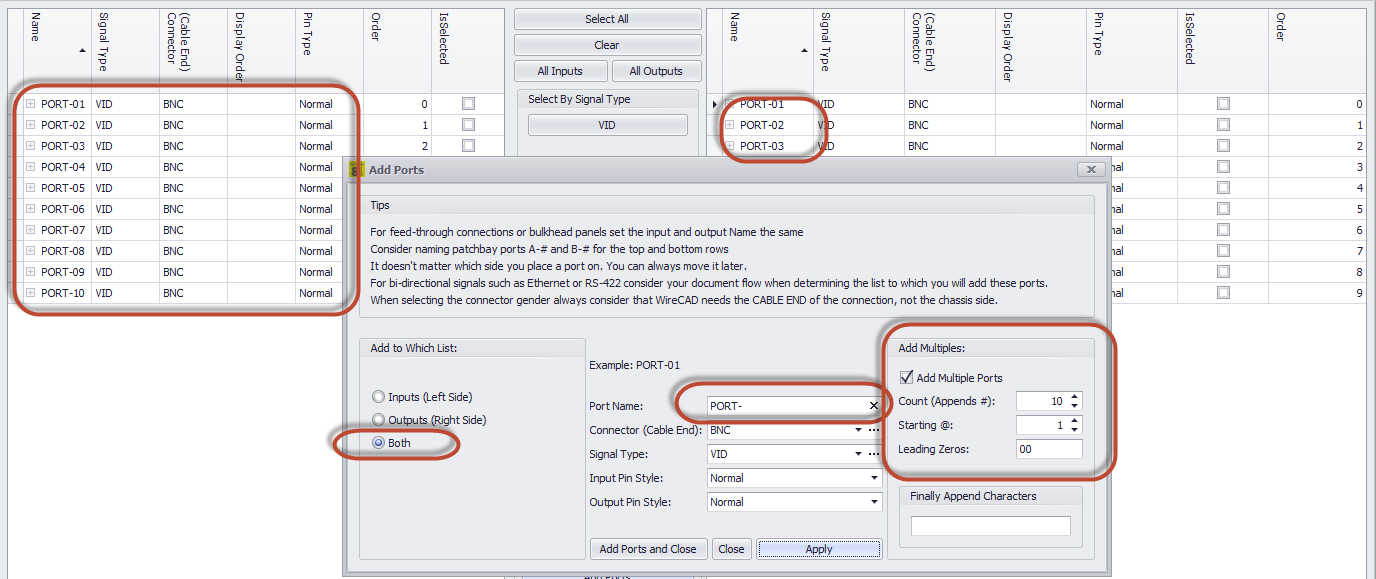

7.Add 10 ports to each grid appending a port number to each record.

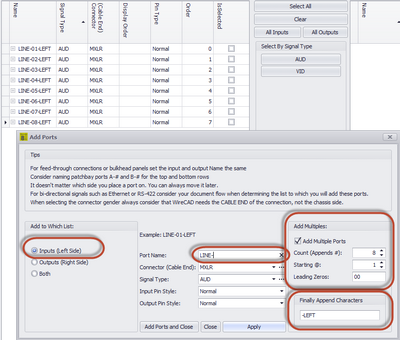

8.Now let's create the 8 left line inputs of a stereo mixer. We will use the Finally Append Characters field to append the characters -LEFT after the number is created and appended to the Port Name.
