Menu: Database>Equipment Library
Menu: Advanced Tools>Equipment Library
Default command line shortcut: LE

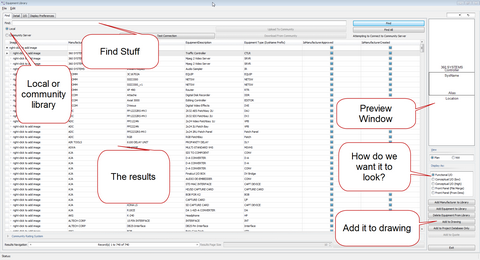

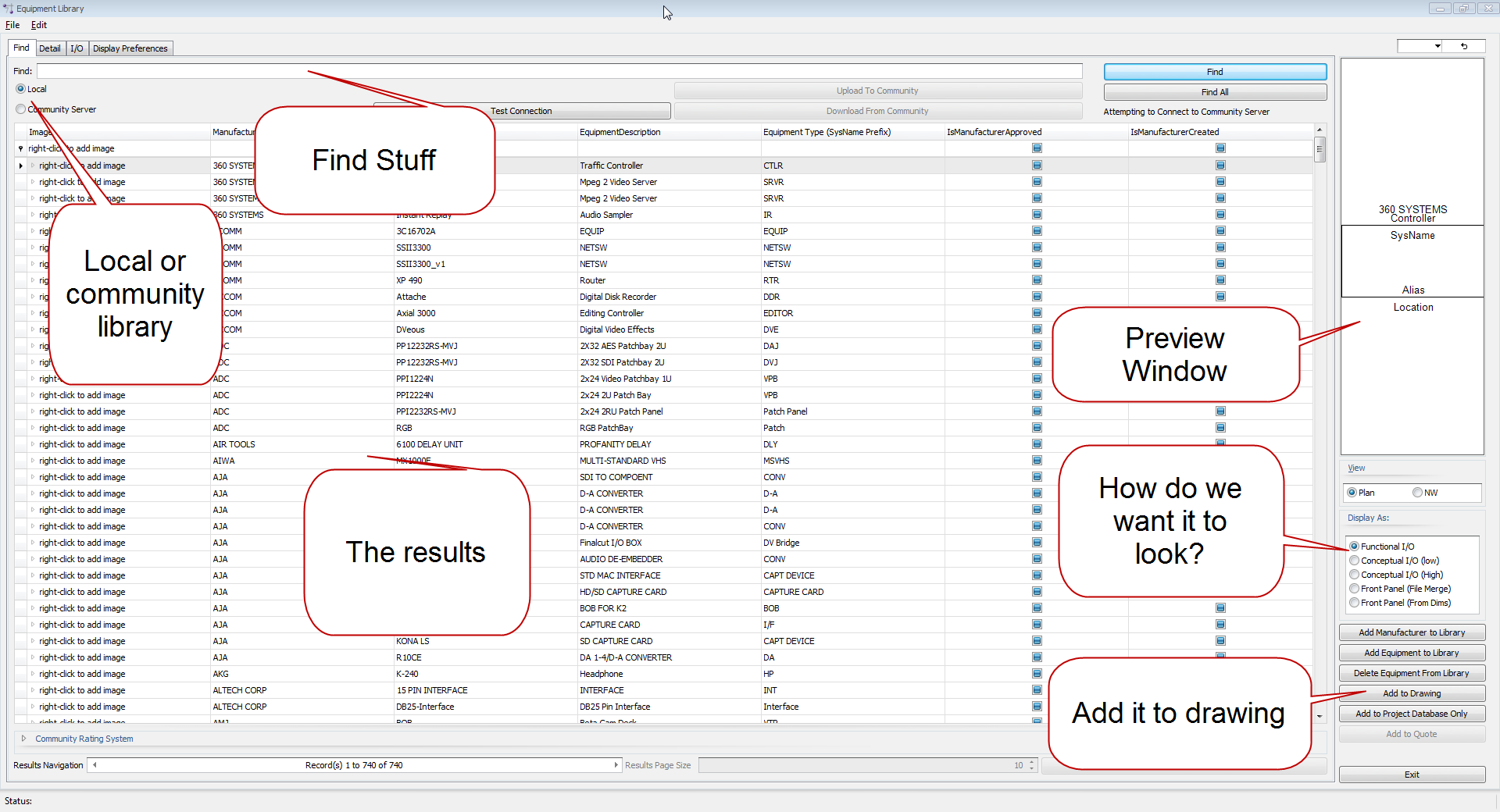

The WireCAD Equipment Library is where you will spend a fair amount of time as you get define equipment that you will use in your designs. This is also where we come to create CAD blocks in our drawings. There are many settings here that let you customize appearance. This chapter is the basics.
Find equipment definitions in the global database or the Community Server.
Preview the block before adding to drawing.
