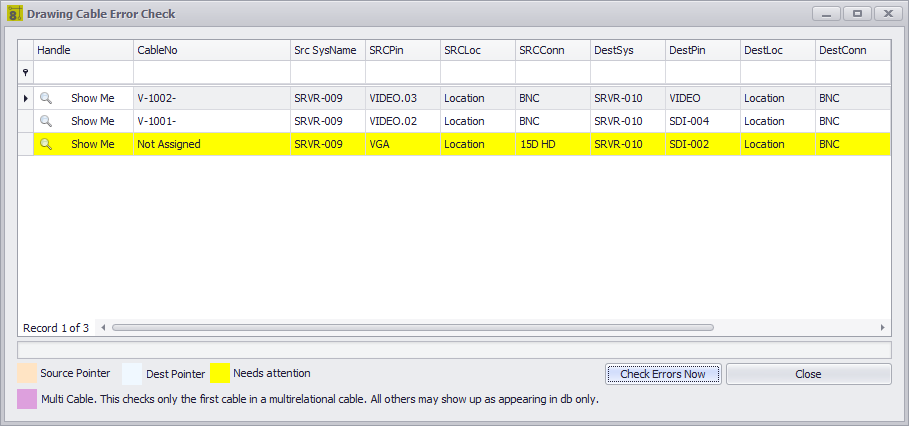

Drawing > Advanced Tools > Drawing Error Check

Commandline: dec

Explanation

Check the drawing against the database. Checks the following:

•Retrieves all cables from the drawing.

•Checks the drawing Cable against the database.

•If matched the record is shown normally. If orphaned or not assigned the background color will be changed.

Dialog Options
