1.Click Database > Cable Types.

2.Click File > New.

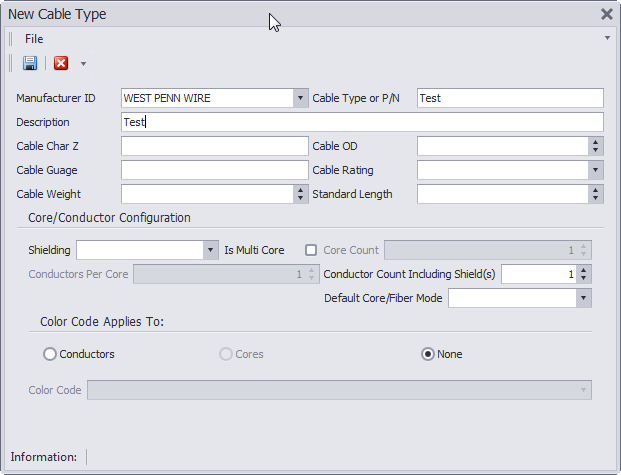

3.Fill in all information about this cable including Manufacturer, Cable Type or P/N & Description. If you are working in the CMS tools you will need to define multi-core core configuration.

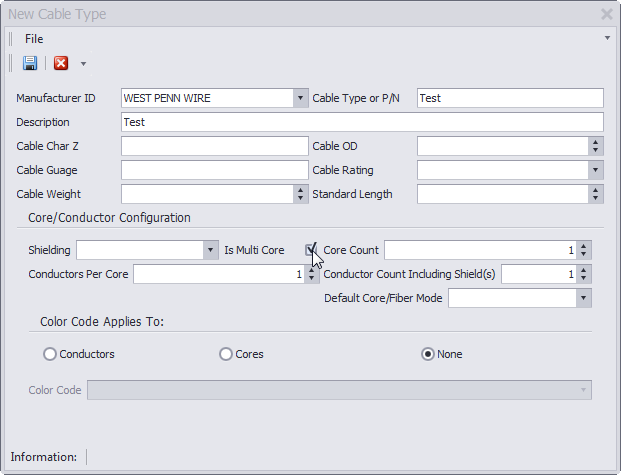

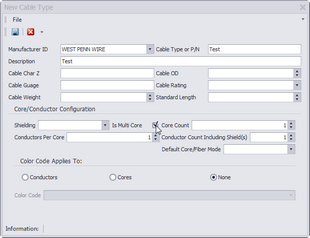

4. If this cable is a multi core cable, you will need to check the Is Multi Core checkbox and set how many cores are in this cable.

5.Select the Default Core\Fiber Mode. To label specific cores as SM or MM, see step 8.

6.Click File > Save.
