Menu: CAD Tools>Blocks>Insert Block Into Drawing
Default command line shortcut: insert
Related Settings:
None
1.Create a new drawing with no template.
2.Draw your titleblock in Model space scaling it 1:1 with your printed page size, ie an 11x17 page border would be 11x17 minus your margins.

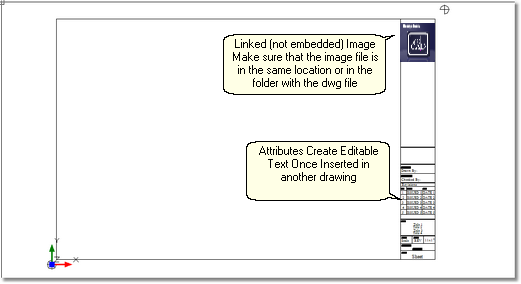

3.Place any images and attribute definitions.
4.Save the drawing.
5.Follow the steps here for placing your title block drawing in any other drawing.
