Menu: Database > Circuits

Default command line shortcut: cmscg

Related Project Settings:

 Circuit Status Items

Product Level: ENT

---

Click Tools > Combine Circuits.



WireCAD CMS tools support the concept of combining circuits. Circuits to be combined must have the same Strand Count. The Circuit Name/Number of the Circuit that is being appended or inserted will be discarded.





•This Circuit - The Circuit Name/Number of the circuit that will be appended or inserted into another circuit. This circuit Name/Number will be discarded if successfully appended or inserted.

•Appends To - The Circuit Name/Number of the circuit that will be appended to.

•Inserts Into - The Circuit Name/Number of the circuit that will be inserted into.

•Before - Before this SysName.

•After - After this SysName.

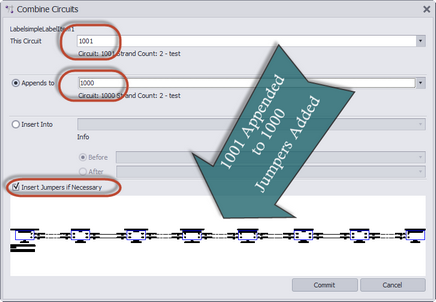

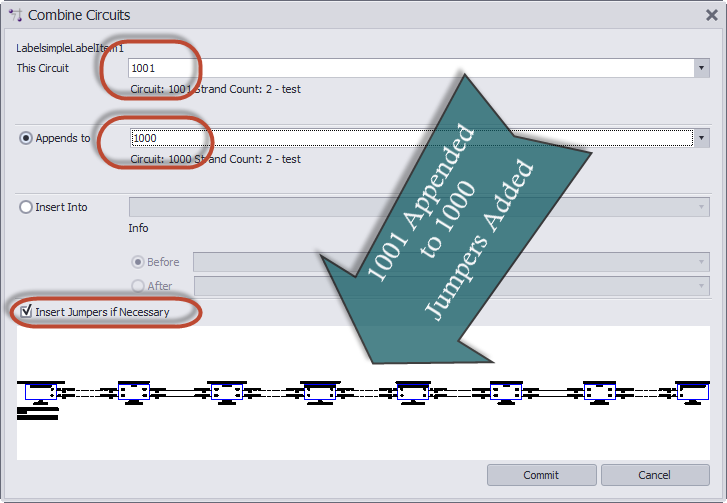

•Insert Jumpers if Necessary - It is possible to create collections of cables in a circuit that do not interconnect. If you do not select this option you will create collection of cables that do not interconnect.

•Preview

•[Commit] - Do it.
