WireCAD v9 with ENT tools has introduced the ability to work in a different manner from previous versions of WireCAD.



The standard work flow for WireCAD users has been to create your Functional Block Diagrams first, then assign SysNames and Cable Numbers and lastly, generate reports based on this information.

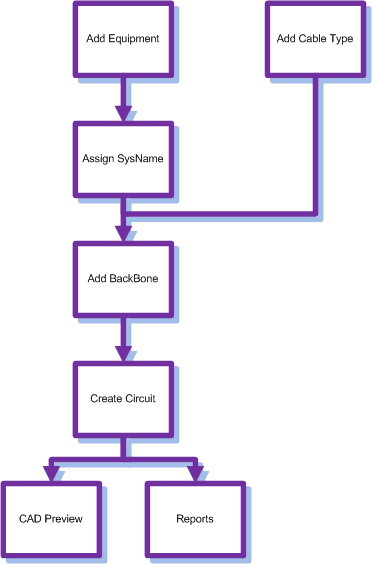

WireCAD v9 ENT allows you to start by entering your SysNames and Cable Numbers into the Database first, create Backbones and Circuits and then generate a Functional Block Diagram based on the information set in the Database.



The ENT tools work on a declare then visualize approach. You tell the database that the thing exists and WireCAD provides different ways to visualize the data in the database.



If the database item of interest is a fiber patch panel you can visualize all connections to and from that panel.



If the database item of interest is a fiber backbone you can visualize as one of the following:

•Riser Diagram

•Ladder Diagram

•Map

•GPS Calibrated (Geo-Referenced) DWG drawing



If the database item of interest is a circuit you can visualize as:

•Circuit Functional Block Diagram

•Map



WireCAD ENT also provides the capability to view your fiber infrastructure in Map view. Using GPS coordinates you can view your plant fiber layout, where fiber patches and panels reside as well as path data for run way-points such as manholes and pull-boxes. You can use the built in Map tool or use your dwg plant drawings (you must calibrate the drawing to the GPS coordinate system first).



You can use WireCAD ENT to manage your fiber and copper infrastructures. WireCAD tracks every strand of fiber and every CATx cable and jumper/cross-connect.
