<< Click to Display Table of Contents >> Circuits Preview Settings |
|

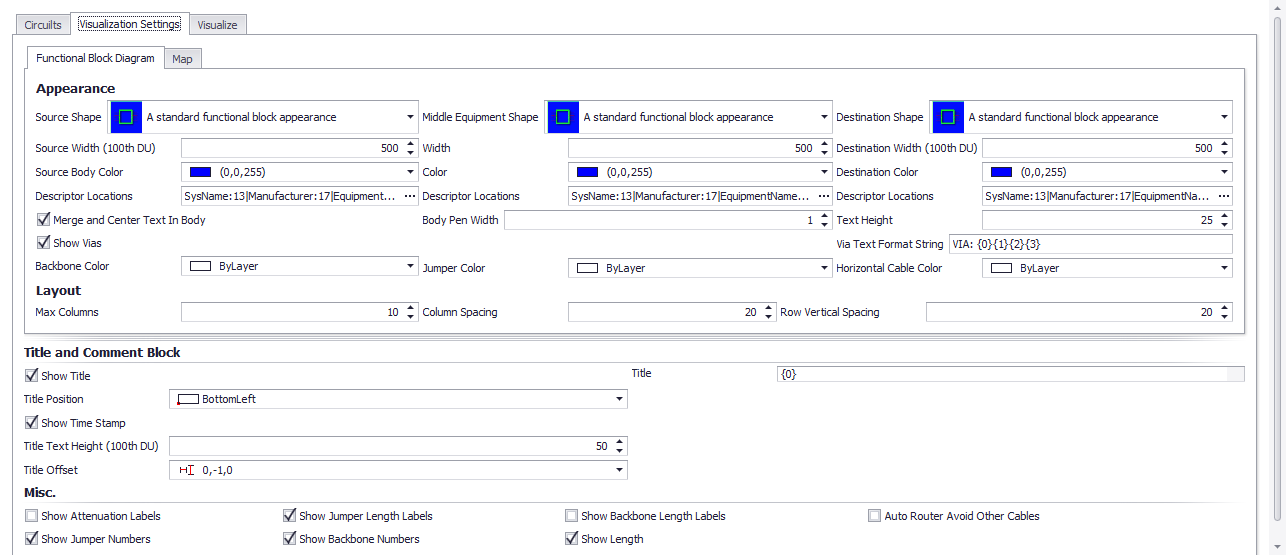

These settings are available on the Circuits Grid [Visualization Settings] tab.
In order to preview Circuits you will first need to Add Circuits
These settings determine the display of the Circuits Visualization tool.
There are two variants:

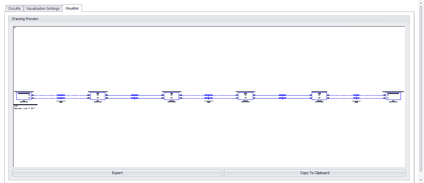

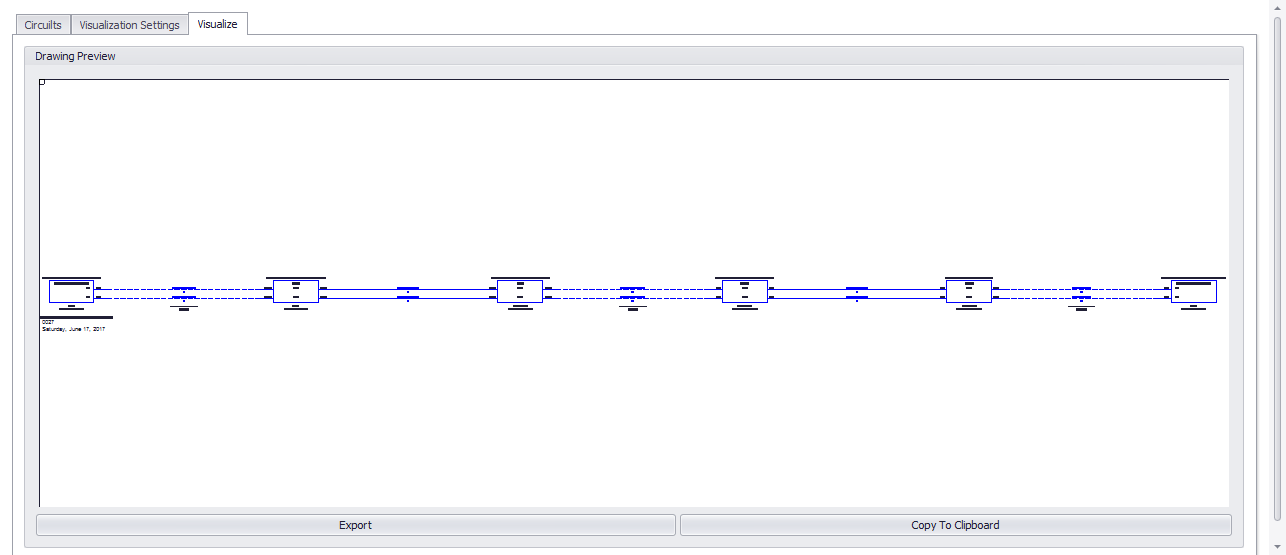

1.Functional Block Diagram.
Displays a CAD representation of the circuit as a functional block diagram. The master source and destination are show with a series of equipment panels, jumpers, and backbones.
2.Map View.
This mode is only viable if you have associated GPS coordinate data in your Locations table. For more information see this topic. In Map view the backbones of the selected circuit(s) are shown on the Map tool. The backbones honor the Backbones Color, and Line Width settings. The Map may be printed or exported through the print preview dialog.
Appearance
•Source, Middle and Destination Shape - Choose one of the 16 stock shapes.
•Source, Middle and Destination shape Width in (100th DU) - How wide is it.
•Source, Middle and Destination shape Color - Set the color of the shape.

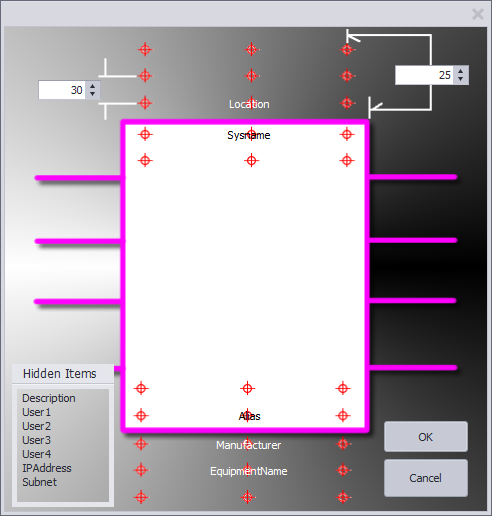

•Source, Middle and Destination shape Descriptor Locations - Drag the descriptor to the location map or to the Hidden Items list to hide.
•Backbone Color - Sets the color.
•Jumper Color - Sets the color.
•Horizontal Cable Color - Sets the color.

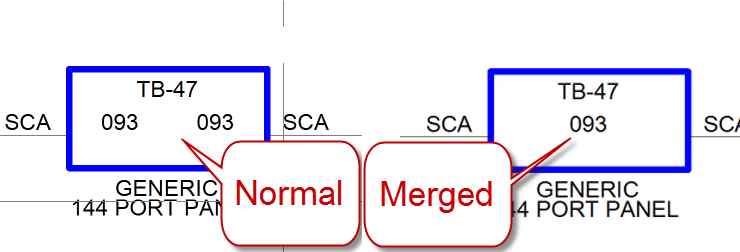

•Merge and Center Text in Body
•Text Height - Sets the height of all text in the visualization.
Layout
•Max Columns - The maximum number of blocks placed before a new row is started below.
•Column Spacing - The distance between blocks.
•Row Spacing - The Distance between rows.

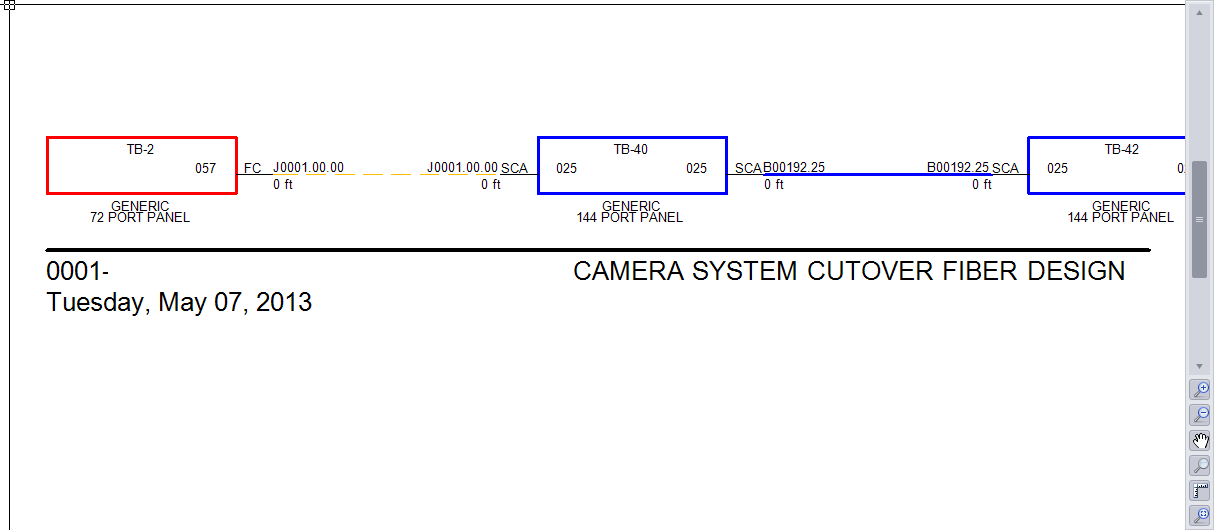

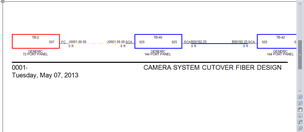

Title and Comment Block
•Show Title - Sets the visibility of the title/comment block.
•Title - You can type whatever you want in this field. In addition the following variables are available:
{0} = Circuit Number
{1} = It System
MISC.

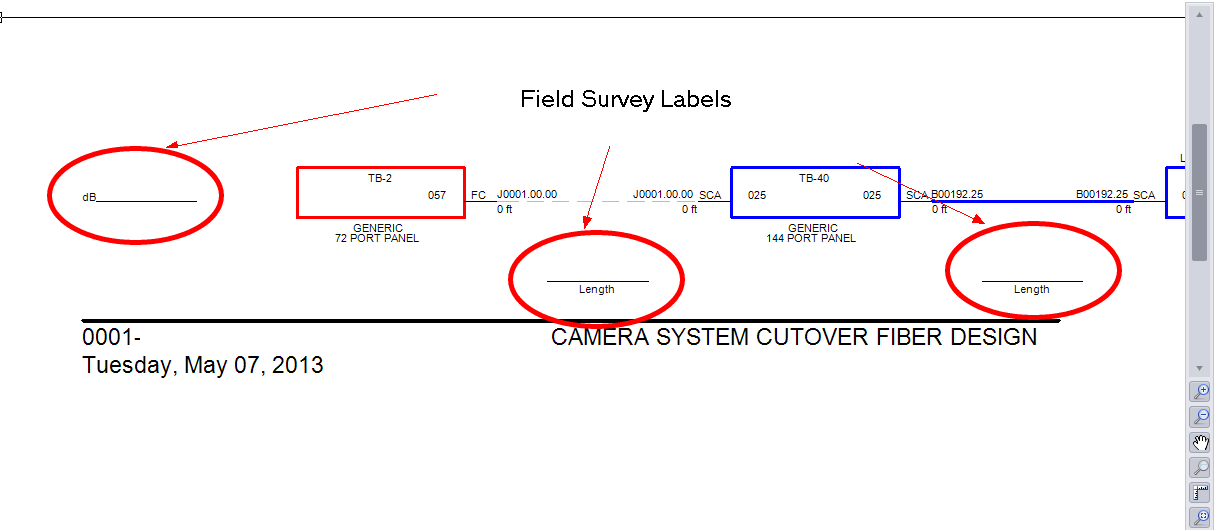

•Show Attenuation Labels, Show Jumper Length Labels, Show Backbone Length Labels

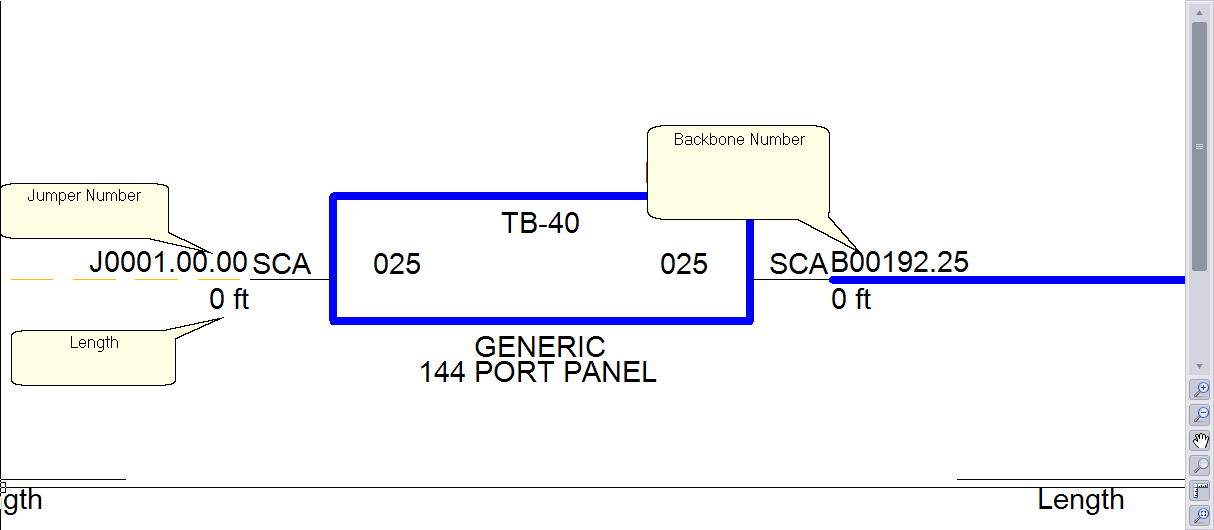

•Show Jumper Numbers, Show Backbone Numbers, Show Length
