Drawing > CAD Tools > XREF Manager
Commandline: xref
Explanation
Manage externally referenced drawings. These are drawings that are visible in the current Model space but maintained in separate files. They are linked here until action is taken to bind them to the current drawing.

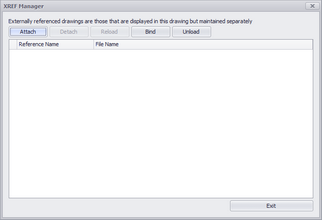

Dialog Options
Item |
Description |
Attach |
Browse to the file. After which you will be presented with the standard Insert dialog to position the incoming file on the screen.
|
Detach |
Remove the XREF |
Reload |
Get any changes to the XREF file and display them |
Bind |
Make it a Block in this drawing. |
Unload |
Get rid of it. |
