Reports > Scan Project for Discrepancies ...
Commandline: dr
Explanation
Scan for common issues.
This tool will generate data in the project Discrepancies table. You can view it by double-clicking the item in the Project Explorer.
Prerequisites
| 1. | Open Project |
Operation
| 1. | Start the tool. |
| 2. | Select items to scan for. |
| 3. | Open the project Discrepancy report from the Project Explorer. |
Related Topics

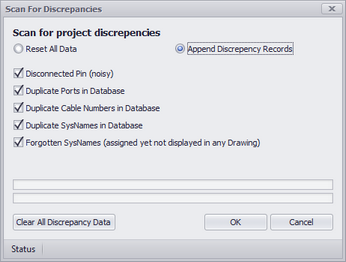

Dialog Options
Item |
Description |
Disconnected Pins |
This is really noisy as it shows all available ports (from the global database) that do not have connections to them in the Cable table. |
Duplicate Ports |
If you duplicated a port in two places you will be warned on cable number assignment this will warn you again. |
Duplicate Cable Numbers |
If you duplicated a number here it is. |
Duplicate SysNames |
If you duplicated a SysName here it is. |
Forgotten SysNames |
If the SysName appears in the Equipment List but not in any drawing. |
|
|
Append/Reset |
Keep the discrepancy list in tact or reset and start over. |
Clear All Data |
Reset and start over. |
