New Drawing Wizard

 Previous pageReturn to chapter overviewNext page

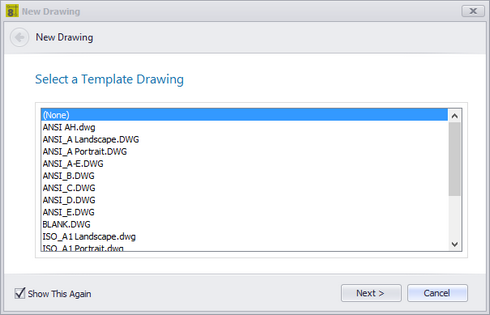

dlg_dwg_new_dwg_wiz1

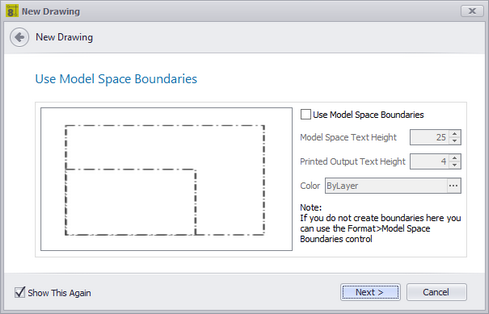

dlg_dwg_new_dwg_wiz2

Drawing > File > New

Commandline: nd

Explanation

Create a new drawing for the project.

Dialog Options

Item

Description

Template Drawings List

Drawings placed in the the %TEMPLATEDRAWINGS% support path. Any drawing is a candidate for saving as a template.

Model Space Boundaries

See this topic on Model Space Boundaries

Navigate Forward

but_wiz_nav_forward

Navigate Backward

but_wiz_nav_back

Show This Again

Show this dialog again.
