Database > Cables
Commandline: cg
Explanation
This tool allows you to manually create a Cable in the Cables table.
Prerequisites
| 1. | SysNamed source and destination equipment in the Equipment List |
Operation
| 1. | Start the tool. |
| 2. | Select the source SysNamed equipment. |
| 3. | Select the destination SysNamed equipment. |
| 4. | Click the [...] button on the Cable No field to generate a Cable Number. |
Related Topics

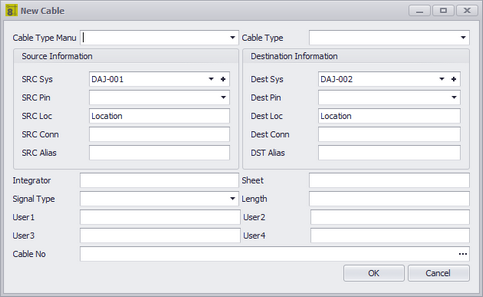

Dialog Options
Item |
Description |
|---|---|
Cable Type |
|
Source Information |
The source SysName is pulled from the drawing. You will need to selection the Src Pin and such. |
Destination Information |
The destination SysName is pulled from the drawing. You will need to selection the Dest Pin and such. |
Other Stuff |
|
Cable No |
Click the [...] button to generate a cable number. |
