Drawing > Drawing > Groups
Commandline: formatgroups
Explanation
New to WireCAD 8 is the ability to create groups of entities in order to better organize your drawings. Groups can be named and described as well as disabled and edited later.

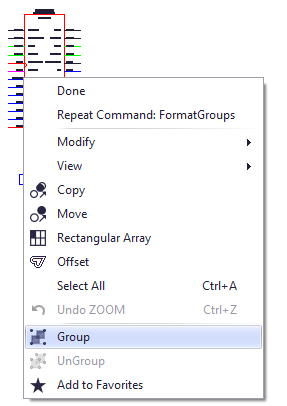

To create a Group select some entities and right-click then click Group

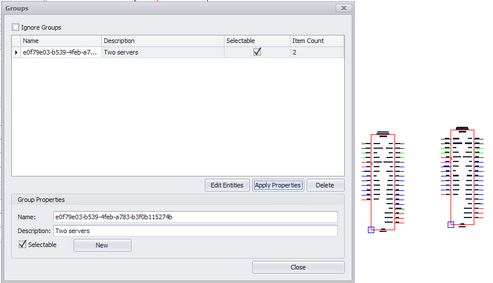

Dialog Options
Item |
Description |
Ignore Groups |
Disable grouping |
Name |
The default Group name will be a GUID. You can rename it if you like. |
Description |
|
Selectable |
Is the group selectable as a group. If selectable = true then when one object in the group is selected all objects are selected. |
Item Count |
|
Edit Entities |
Add or remove entities to the group. |
Apply Properties |
Send the value of the Group Properties fields to the group. |
Delete |
Deleting the Group does not delete the entities. |
Group Properties |
|
New |
New from the Group Properties. |
