Create a New Project

1. With WireCAD open, click Application Menu > New Project.

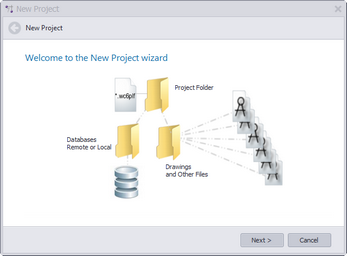

2. A new window will open saying “Welcome to the New Project Wizard”. Click [Next].

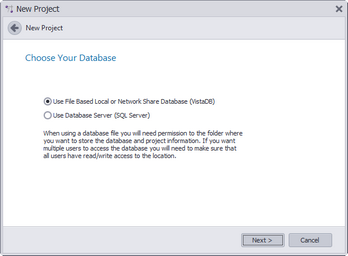

3. On the next page, select Use Database Server (SQL Server) and click [Next].

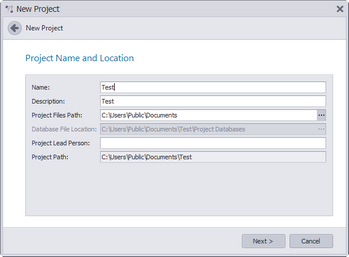

4. Enter a Project Name, Description and select a Project Files Path. This is where your project files will be saved. This is different than your Database files and will not be located in the same directory. It should be on a network share visible to other users of the project. Click [Next].

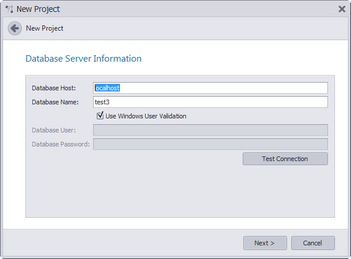

5. Enter in your SQL Server database information and click [Next].

Note: Please contact your IT department if you are unsure of any information required on this page.

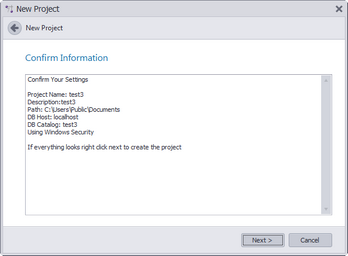

6. Verify that all information looks correct and click [Next].

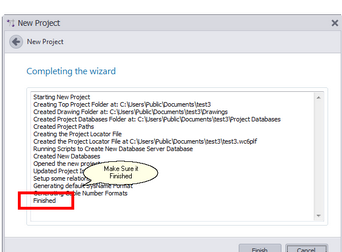

7. Wait for WireCAD to build your project and then click [Finish]. You are now ready to start working in your new SQL Project.
