This step by step will guide you on exporting a circuit.

How-to-Guide

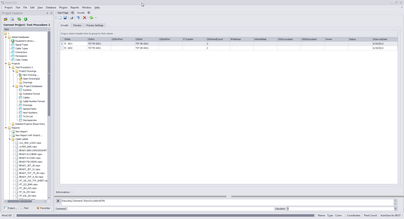

1. Open the Circuit Grid by entering CMSCG in the command line prompt. The Circuit Grid Window will open.

Circuit grid

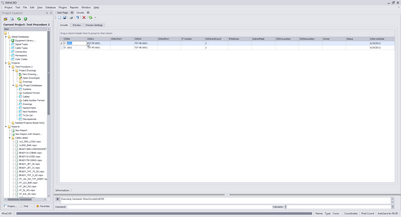

2. Select the Circuit Number you would like to Export.

Select Circuit Number

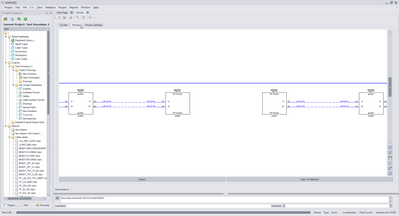

3. Select the [Preview] Tab.

Preview Button

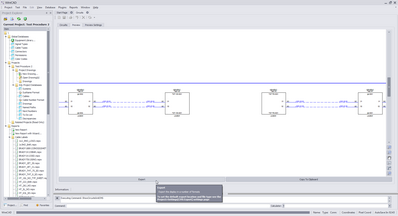

4. Verify the circuit is the one you would like use and click [Export].

Export Button

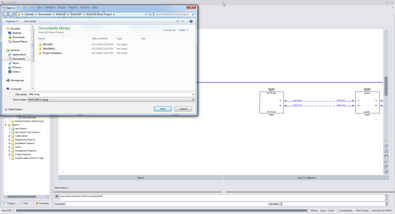

5. A Windows explorer window will come up. Enter where you would like to export to, what you would like this file to be called and what file type you would like to export as.

Note: All of these settings can be automated in the Settings Menu.

Export to

6. Click [Save]. Your exported file will now be created and placed in the location you have specified of the file type you specified in the Save As Dialog filter.
