Menu: Report>New Report with Wizard

Default command line shortcut: rw

Create a new report

Applies To:

XLT PRO

Related Settings:

None

Click Reports>New Report with Wizard. Alternately: from the Project Explorer - click New Report with Wizard

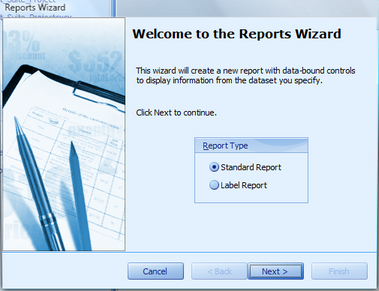

Select the Standard Report option. Click [Next >]

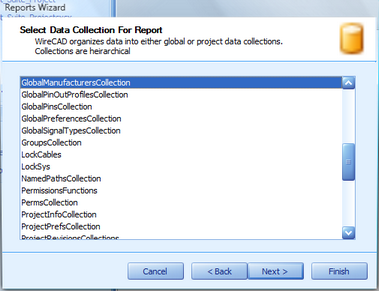

Select a data collection. Data collections access both the global and project databases. For example: say you wanted to show a list of all manufacturers. You would select the GlobalManufacturersCollection.

Note: collections are hierarchical to aid in the creation of subreports. All collections are populated with data when the report is previewed.

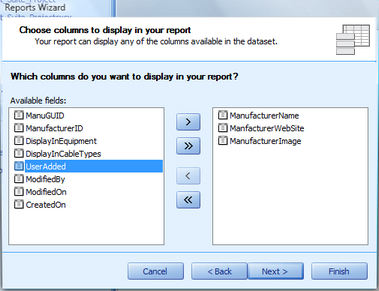

Select the fields (columns) you wish to display in the report.

Note: use the > >> < << buttons in the center of the two lists to move items between the lists

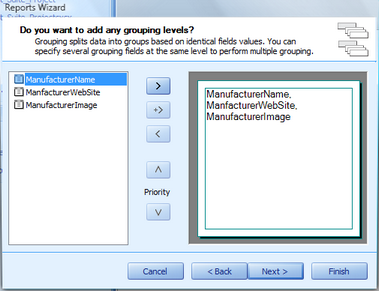

Apply any grouping

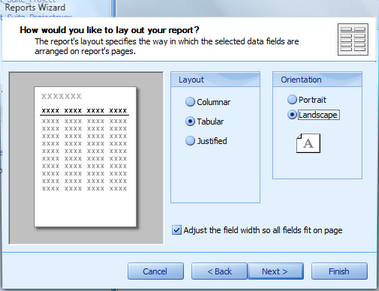

Select a Layout and Orientation for your report.

Note: the Adjust field width to fit function will force all selected fields on to a single page possibly rendering some of the data unreadable. If you have lots of fields to display, consider using a Justified report

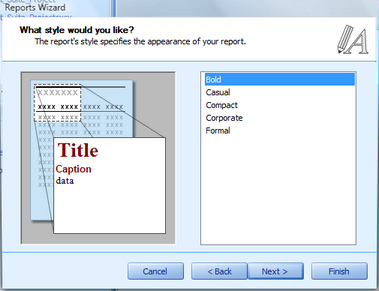

Select a Report Style

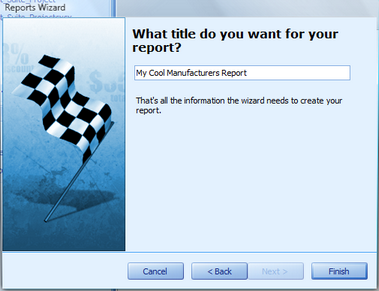

Title your report

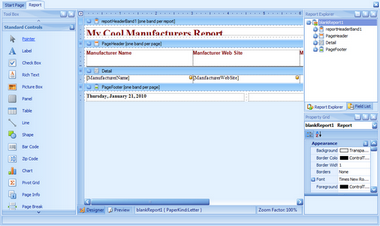

Click [Finish] to create your shiny new report.

Click File>Save and save your work to your reports support path
