Getting Started > Equipment List Visualizer

Menu: Database>Project Systems>Equipment List (SysNames)

Default command line shortcut: sys

The Equipment List Visualization tool utilizes information in the Project Systems table and the Global Equipment Library and the Project Cables database to create a view of all cables attached to the selected item.

These details are useful for error checking and in the field as an installation aid.

Applies To:

PRO, ENT

Related Settings:

See the Settings Tab

Controls

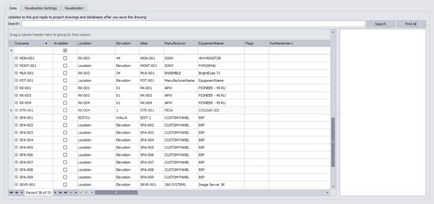

The Equipment List with RTR-01 selected

equiplist_data

Settings Tab

Control the output of the Visualizer.

Use Last Display Order if Set

Sorts the ports of the block based on the saved display order if any.

Terminal

The terminal to display

Use Last Saved Appearance

If there are device level setting saved, use them.

Body Width and Pin Spacing

Appearance settings in 100/DU

Port Data Source

•	Pull the port data from the Equipment Library. This will show ALL ports associated with this device definition.

•	Pull the port data from the Cables table. This will show only those ports to which cables have been attached and assigned.

Title Block

Describes the visualization. Salt to taste.

Visualization tab

Does it.

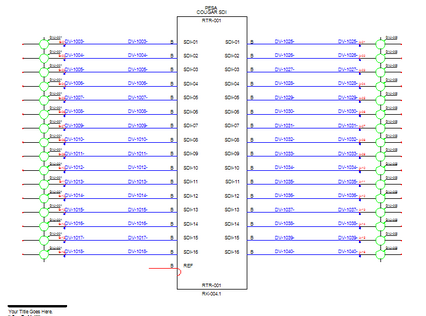

equip_viz
