Menu: Database>Pinouts

Default command line shortcut: po

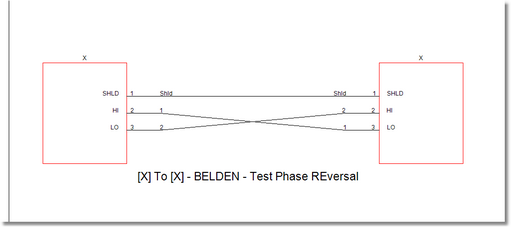

The Pinout utility serves two functions. The first is to generate pinout detail drawings

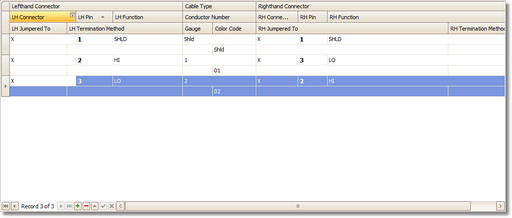

The second is to generate data that can be used in the conductors table under any cable that we wish to attach the data to.

Applies To:

PRO

Related Settings:

None
