WireCAD Projects

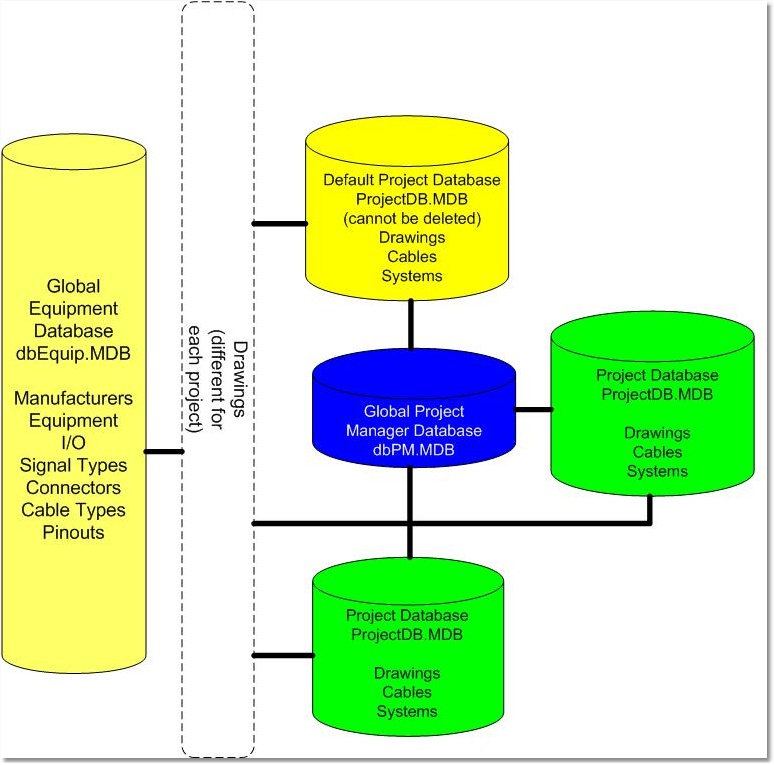

WireCAD organizes drawings and cable information on a project basis. WireCAD maintains a separate database for each project. This allows you to have multiple projects or installations. Each project has a separate set of cable numbers and system ID’s.

Each project is organized into a series of folders on your local hard drive or on a network share.

WireCAD version 4 will place three databases in the Project Databases folder:

1.	ProjectDB.MDB -- The project database. Contains all information regarding project systems, cables, drawings, etc.

2.	dbNetlist.MDB -- This is a database of Netlists or drawing indexes. This database is updated automatically. The data from this is displayed in the Project Explorer.

3.	dbXlog.MDB -- The transaction log.
