System Snapshot

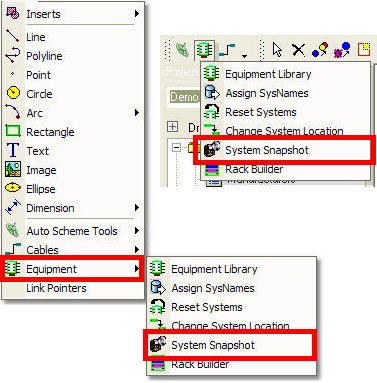

Menu: Tools>Equipment>System Snapshot

Default keyboard shortcut: None

Function:

Sometimes it is useful for us to see all of the connections to a specific piece of equipment. For example: let's say that we have drawn a JF-01 as Terminals in line for signal flow readability. JF-01 may appear on any number of sheets in order to represent all of the connections. While this is a friendly way to draw for the trouble-shooter, it has its limitations for the installer. The installer must now hunt all of the connections to JF-01 out of the entire drawing set. Obviously, this is a tedious and error prone task. The System Snapshot tool provides a graphical representation of all the connections to a specific system as derived from the Project Cables database.

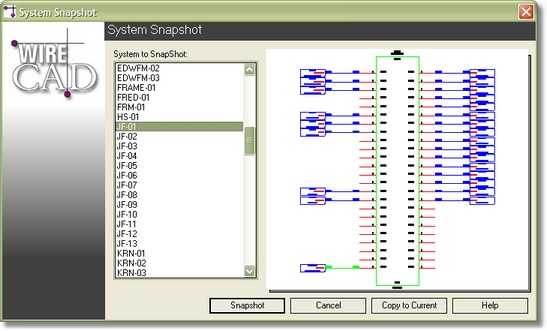

System Snapshot Control Descriptions
