Explode

 Previous pageReturn to chapter overviewNext page

Applies To:

All product levels

Related Settings:

None

Explode

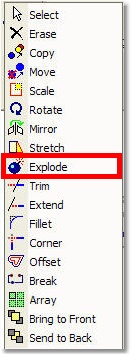

Menu: Modify>Explode

Default Keyboard Shortcut: MDA

With Explode command you ungroup compound entities back to their raw entity state.

Before Explode

After Explode





After you start the command, follow the Command Line prompts to complete the command.

Escape or right click to exit.
